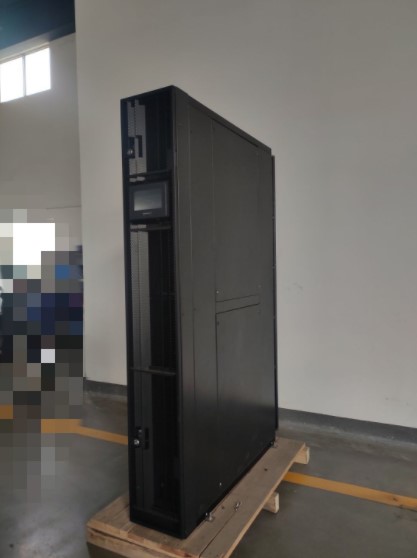

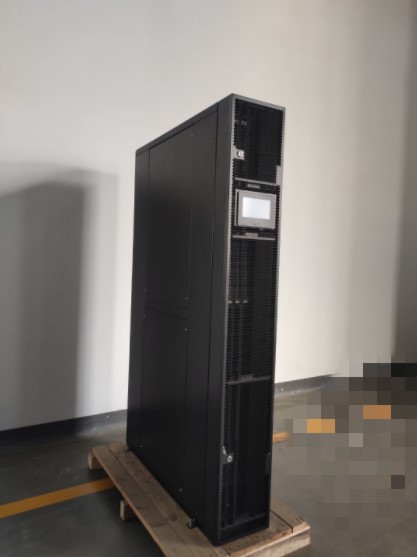

600mm Length 2600m3 air Flow Singel Cooling In Row Air Conditioner
Note:
■ Refrigeration conditions: indoor dry bulb/wet bulb temperature 27/19℃; outdoor dry bulb temperature 50/40℃;
■ The air volume and static pressure in the table are standard parameters, which can be designed according to customer requirements, and the input power of the whole machine may change;
■ Inverter compressor system can be used to achieve more accurate capacity control
■ The noise value is measured at a height of 12m and 2m from the front of the unit when cooling under standard
air volume;
■ The connecting pipe diameter of R410A type coal chiller is in the brackets. The connecting copper pipe between indoor and outdoor units is recommended to be within 35 meters.
| Modelandoor unit) | R161A | R261A | R361A |
| Main Power Supply | 380V 3Ph-50Hz |
| 40℃DB / 20%RH | |
| Total cooling Capacity (kW) | 15.5 | 25.5 | 41.6 |
| Sensible cooling capacity(kW) | 15.5 | 25.5 | 41 .6 |
| 37℃DB / 24%RH | | | |
| Total cooling Capacity (kW) | 14.7 | 24.1 | 39.9 |
| Sensible cooling capacity(kW) | 14.7 | 24.1 | 39.9 |
| 35℃DB / 26%RH | | | |
| Total cooling Capacity (kW) | 14.1 | 22.9 | 37.9 |
| Sensible cooling capacity(kW) | 14.1 | 22.9 | 37.9 |
| 32℃DB / 29%RH | | | |
| Total cooling Capacity (kW) | 13.2 | 21.6 | 36.8 |
| Sensible cooling capacity(kW) | 13.2 | 21.6 | 36.1 |
| 30℃DB / 34%RH | | | |
| Total cooling Capacity (kW) | 12.5 | 20.5 | 35.3 |
| Sensible cooling capacity(kW) | 12.5 | 20.5 | 33.6 |
| Displacement(m/ h) | 2800 | 5200 | 8600 |
| Fan quantity | 6 | 6 | 3 |
| Electric heater | | | |
| Heating capacity kW | 3 | 3 | 6 |
| Humidifier | | | |
| humidify capacity-kg/h | 3 | 3 | 3 |
| Pipe dimensions | | | |
| Liquid pipes mm | 12.7 | 12.7 | 15.9 |
| sas pipes -mm | 19.05 | 19.05 | 22.2 |
| Hunidifier inlet pipes(mother srew) | G3/4" | G3/4" | G3/4" |
| Condensing pump dain pipes imer diameter | 25 | 25 | 25 |
| Width*Depth*Height (mm) | 300 × 1080×2000 | 300 × 1080×2000 | 600 × 1080×2000 |
| Weight(kg) | 115 | 155 | 340 |
| Max.working current of condensing unit(A) | | | |
| Single cooling | 12.2 | 19.1 | 31.8 |
| Single cooling+ Humidifer | 15.7 | 21.8 | 35.9 |
| | Single coling+ Humidifier theaing | 16.9 | 23.5 | 41.3 |
| Recommended air switch and cables sizes | | | |
| Single cooling | Air switch (A) | 32 | 32 | 50 |
| Cables ( mm2) | 6 | 6 | 10 |
| Single cooling+Humidifier | Air switch (A) | 32 | 32 | 50 |
| Cables ( mm2) | 6 | 6 | 10 |
| Single cooling+Humidifer+heating | Air switch (A) | 32 | 32 | 63 |
| Cables ( mm2) | 6 | 6 | 10 |
Water cooled inrow air conditioner:
| Modelandoor unit) | R161W | R261W | R361W |
| Main Power Supply | 380V 3Ph-50Hz |
| 40℃DB / 20%RH | |
| Total cooling Capacity (kW) | 16.7 | 27.5 | 42.3 |
| Sensible cooling capacity(kW) | 16.7 | 27.5 | 42.3 |
| 37℃DB / 24%RH | | | |
| Total cooling Capacity (kW) | 15.6 | 25.9 | 41.2 |
| Sensible cooling capacity(kW) | 15.6 | 25.9 | 41.2 |
| 35℃DB / 26%RH | | | |
| Total cooling Capacity (kW) | 15.3 | 23.8 | 38.8 |
| Sensible cooling capacity(kW) | 15.3 | 23.8 | 38.8 |
| 32℃DB / 29%RH | | | |
| Total cooling Capacity (kW) | 14.3 | 22.6 | 37.4 |
| Sensible cooling capacity(kW) | 14.3 | 22.6 | 36.8 |
| 30℃DB / 34%RH | | | |
| Total cooling Capacity (kW) | 13.5 | 21.9 | 36.7 |
| Sensible cooling capacity(kW) | 13.5 | 21.9 | 34.7 |
| Displacement(m/ h) | 3000 | 5500 | 8200 |
| Fan quantity | 6 | 6 | 3 |
| Electric heater | | | |
| Heating capacity kW | 3 | 3 | 6 |
| Humidifier | | | |
| humidify capacity-kg/h | 3 | 3 | 3 |
| Pipe dimensions | | | |
| Liquid pipes mm | 12.7 | 12.7 | 12.7 |
| sas pipes -mm | 19.05 | 19.05 | 19.05 |
| Hunidifier inlet pipes(mother srew) | G3/4" | G3/4" | G3/4" |
| Condensing pump dain pipes imer diameter | 25 | 25 | 25 |
| Width*Depth*Height (mm) | 300 x 1080x 2000 | 300 x 1080x 2000 | 300 x 1080x 2000 |
| Weight(kg) | 120 | 150 | 150 |
| Max.working current of condensing unit(A) | | | |
| Single cooling | 11.8 | 19 | 31.1 |
| Single cooling+ Humidifer | 15.5 | 21.5 | 34.6 |
| | Single coling+ Humidifier theaing | 16.7 | 23.4 | 40.5 |
| Recommended air switch and cables sizes | | | |
| Single cooling | 32 | 32 | 50 |
| Single cooling+Humidifier | 6 | 6 | 10 |
| | 32 | 32 | 50 |
Single cooling+
Humidifier+heating | 6 | 6 | 10 |
| | 32 | 32 | 63 |
Single cooling+
Humidifier+heating | 6 | 6 | 10 |
Why Us?
HeFei HAIRF international trading., ltd provides solutions for any type of environment friendly precise air conditioning need.
Being precision air conditioner professional manufaturer, we have more than 30years R&D and manufature experience. We
can provide competitive discount on our products and are able to sell these at lower than market rates and also provide much
better after-sales sales service.
