Hot sale Haif Modular Data Center integrated solution with RACKS, UPS, PDU, Precision air conditoner
Product Features:
* High efficiency: efficient and energy saving;
* Modularity: modular UPS+Battery, extendibility;
* Intelligence, visibility: intelligent design of monitoring and management system;
* Isolation of internal & external module, anti-dust and dehumidification;
* Rapid deployment: no need engineering survey, plug and play, facilitates the operation with one
stope deployment;
* Environmental and energy management, Operation optimization, PUE maximum;
* Cloud computing: network connections management, parallel or multi-network;
* Precision cooling system, energy-saving: Precision cooling, central air condition needless, cost
reduction
* Standard cabinet: standard aluminium frame structure EIA-310-D, easy installation within 5
minutes
* All-in-one: Integrated of rack, air condition, UPS, PDU monitoring & on-site management system etc
Modularization cooling system in the container form including UPS, AIR CONDITIONER, BE PROTECTED ETC
| Model | HMDC-0803 | HMDC-0805 | HMDC-0808 | HMDC-1603 | HMDC-1605 | HMDC-1608 | HMDC-2403 | HMDC-2405 | HMDC-2408 |
| Cabinet subsystem |
| Dimension | W*D*H: 600*1100*2000, other size can be customized |
| QTY | 8units | 16units | 24units |
| Cabinet power density | 3kw/rack | 5kw/rack | 8kw/rack | 3kw/rack | 5kw/rack | 8kw/rack | 3kw/rack | 5kw/rack | 8kw/rack |
| Cabinet total power | 24kw | 40kw | 64kw | 48kw | 80kw | 128kw | 72kw | 120kw | 192kw |
| Cabinet power supply | Dual PDU power supply |
| Distribution subsystem |
| Power supply | 2N power supply, Tier I grade |
| Column counter | Precision column cabinet : double loop power supply |
| UPS | Modular UPS |
| Model | X7-50 | X7-75 | X7-100 | X7-75 | X7-100 | X7-150 | X7-100 | X7-150 | X7-250 |
| Capacity | 50KVA | 75KVA | 100KVA | 75KVA | 100KVA | 150KVA | 100KVA | 150KVA | 250KVA |
| Configuration | 2 sets |
| Redundant architecture | 2(N+1) | 2(N+1) | 2(N+1) | 2(N+1) | 2(N+1) | 2(N+1) | 2(N+1) | 2(N+1) | 2(N+2) |
| Refrigeration subsystem |
| PAC | In-row air conditioner |
| Model | R261A | R401A | R261A | R161A | R261A | R261A | R261A | R261A | R401A |
| Air supply | Horizonal air supply |
| Cooling method | Air cooled/ water cooled/ chilled water |
| Cooling capacity(kw) | 25.5 | 41.5 | 25.5 | 15.5 | 25.5 | 25.5 | 25.5 | 25.5 | 41.5 |
| Configuration | 2pcs | 2pcs | 4pcs | 4pcs | 4pcs | 6pcs | 4pcs | 6pcs | 6pcs |
| Redundant architecture | 1+1 redundancy | 1+1 redundancy | 3+1 redundancy | 3+1 redundancy | 3+1 redundancy | 5+1 redundancy | 3+1 redundancy | 5+1 redundancy | 5+1 redundancy |
| Monitoring subsystem |
| Terminal interface | 21inch human touch screen |
| UPS monitoring | support |
| Battery online monitoring | Support(optional) |
| Power distribution monitoring | Support |
| PAC monitoring | Support |
| Leakage monitoring | Support |
| Temperature and huminity monitoring | Support |
| Smoke monitoring | Support: credit card/ password/ fingerprint(optional) |
| CCTV | Sopport |
| Access control | Support |
| System status |
| Size L*W | 5.1*3.4m | 5.4*3.4m | 5.4*3.4m | 7.8*3.4m | 7.8*3.4m | 8.1*3.4m | 10.2*3.4m | 10.5m*3.4m | 12*3.4m |
| Area | 17.34m2 | 18.36m2 | 18.36m2 | 26.52m2 | 26.52m2 | 27.54m2 | 34.68m2 | 35.7m2 | 40.8m2 |
Product Tags:
|
|

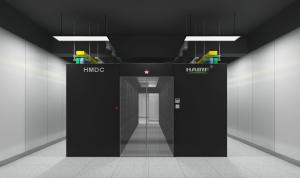

30kw Modular Data Center Images
|
