Upflow high-end quality components precision air conditioner aircooler/water cooler
Application/Usage
- Luxury hotel
- Data centers
- Internet providers
- Server rooms
- Control rooms
- Museums
- Telecom
| Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 0451 |
| Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 44 |
| Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 13000 |
| EER | | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 |
| SHR | | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 |
| Compressor | | | | | | | | | |
| Type | | Scroll |
| Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 10.1 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| I F hned coil evaporator | | | | | | | | | |
| Frontal surface | ㎡ | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 1.7 |
| Geometry | mm | 25X21.65 |
| Type of fins | | Hydrophilic |
| Fin pich | mm | 1.8 |
| Fan section | | | | | | | | | |
| Type | | Centrigugal fan |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 4.9 |
| Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 2400 |
| AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 355 |
| Air flter | | | | | | | | | |
| Eficiency | | EU4 |
| Overall surface | ㎡ | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 7.8 |
| Fire resistance dass | | | | | | | | | |
| I Electrical heaters | | | | | | | | | |
| Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 8 |
| Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Material | | PTC |
| Humidifier | | | | | | | | | |
| Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
| Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension&Weight | | | | | | | | | |
| Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 1750 |
| Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
| Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 610 |
| Sound level | | | | | | | | | |
| Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 60 |
Filter
Air filter which is EU4 standard which is metallic bracket , filtering the dust and particulate effectively by air circulation , then purifying the air environment of telecom room.
Indoor blower fan
A blow fan adopts direct drive centrifugal fan with backward curved blades, the range of static pressure can be adjusted from 0 to 400pa, realizing the continuous operation of 365 days* 24 hours, 10 years’ average life.
The high-performance unit employ energy-saving EC fan controlled by 0-10V signal,DC driven and stepless speed regulation,which is more excellent than traditional fan in energy-saving filed.
Condenser
With an enclosure of anti-corrosion alloy that ensures service life and appearance of the is elaborately designed and able to satisfy the environmental protection requirements on noise, and a fan speed regulator that controls the rotating speed under different temperature and ensures sound operating effect and energy saving.
FAQ
Q:What are your factory main products?
A:Precision Air Conditioners,UPS & Data center.
Q:How to choose Precision air conditioner and UPS brand?
A:Hairf brand have reliable quality and reasonable price.
Q:What is your company strength?
A:A strong team with more than 20 years of experiences of manufacturing air conditioners and
UPS,we have our own Lab,R&D Center,Assembly Line, QC Staff & Equipments.
Q:What about the Warranty Service?
A:AII products have 1 year guarantee under no artificlal damage.
Hairf, the worldly leading provider of critical power supply and cooling systems,who is specialized in manufacturing precision air conditioner,UPS uninterruptible power supply,VRLA battery,STS static transfer switch,intelligent power distribution system and SPD surge protection device.
Hairf, with more than 30 years' R&D and manufacturing experience in server
room equipment field,depends on world class labs and inspection and production equipment,not only can provides specialized products for meeting the exact requirement of user's job site, but also provides a perfect total solution for server room,rely on our complete production line of critical equipment used in server room.
|
|

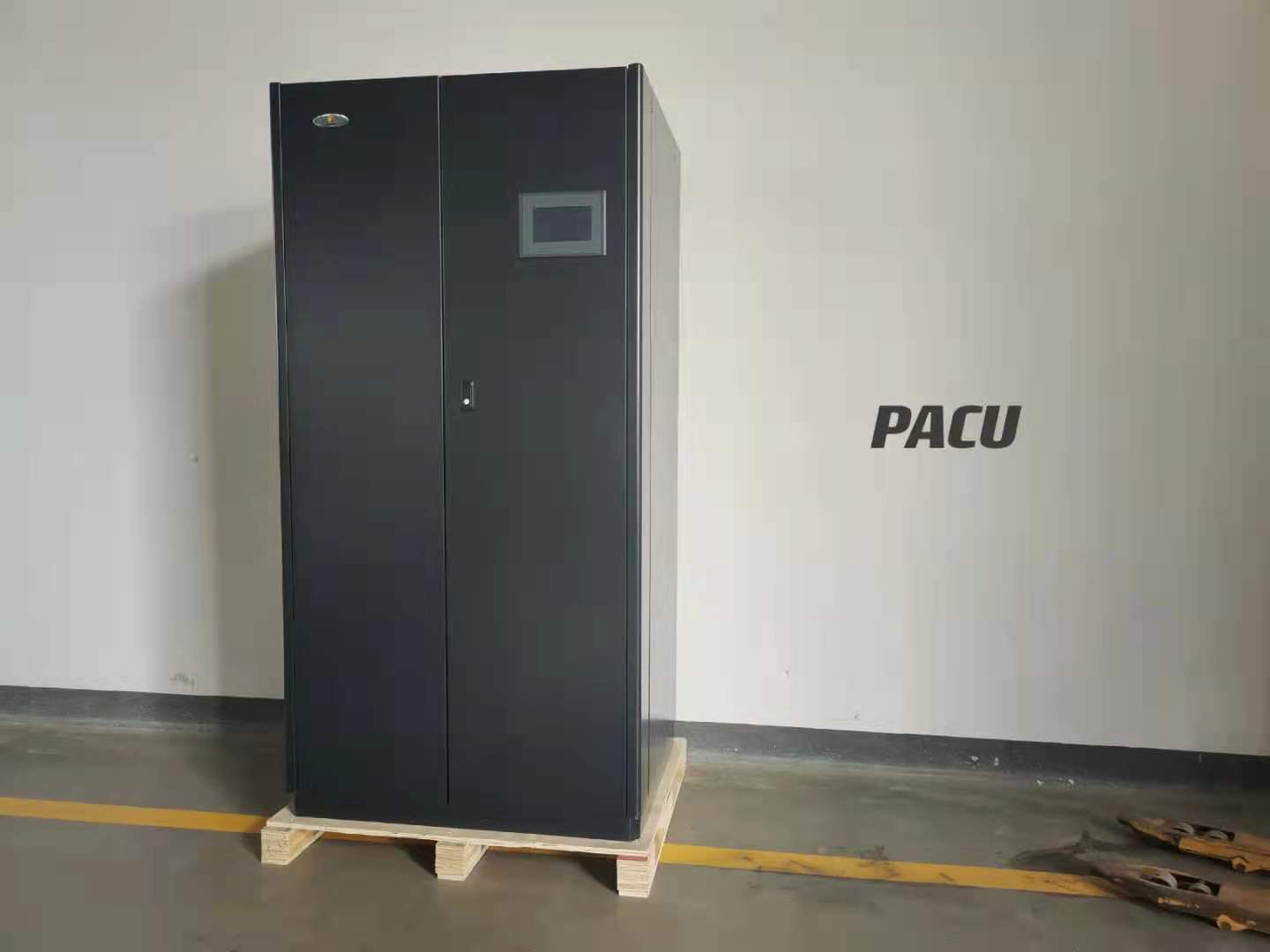

Upflow high-end quality components precision air conditioner aircooler/water cooler Images
|
