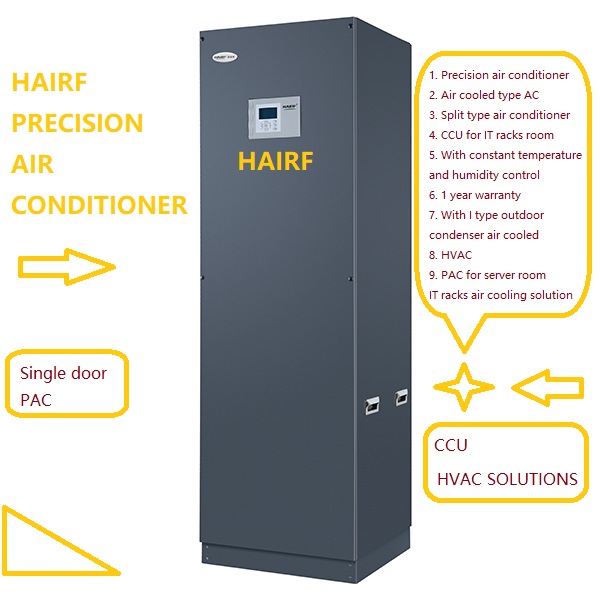

Network Cabinet Precision Air Conditioner Multi Function Air Cooler Type

Brand Name : HAIRF

Model Number : H0271

Certification : CE 3C RoHS ISO

Place of Origin : CN

MOQ : 1

Price : $3236-18000/set

Payment Terms : T/T

Supply Ability : 500set/month

Delivery Time : 35-45days

Packaging Details : wooden case

Waranty : one year

Color : Black

Flow : 1720-24200m³

Selling point : competitive price

Cooling capacity : 5.9-102kw

cooling type : air cooled type

air flow : level

package : wooden pack

Contact Now

Network cabinet air conditioning multi function air cooler type cooling and humidity control pac

Model : HADR/HAUR 0201 0251 0261 0271 0301 0351 0401 0451
Cooling capaciy(1) kw 21.2 23.2 26.8 27.3 31.5 35.6 41.2 44
Air flow m³/h 6530 7050 7280 8500 9000 10000 11000 13000
EER 3.72 3.6 3.6 3.75 3.71 3.71 3.71 3.68
SHR 0.98 0.98 0.92 0.98 0.99 0.98 0.97 0.95
Compressor
Type Scroll
Capacily kw 5.2 5.5 5.9 6.2 7.4 8.3 9.3 10.1
Quantity nr 1 1 1 1 1 1 1 1
I F hned coil evaporator
Frontal surface ㎡ 0.8 0.8 0.8 1.4 1.4 1.4 1.7 1.7
Geometry mm 25X21.65
Type of fins Hydrophilic
Fin pich mm 1.8
Fan section
Type Centrigugal fan
Quantity nr 1 1 1 1 1 1 2 2
Absorbed curent A 2.5 2.5 2.8 3.2 3.5 4.1 4.4 4.9
Absorbed power W 1050 1100 1200 1300 1320 2000 2150 2400
AESP Max Speed(2) Pe 360 360 360 380 380 355 355 355
Air flter
Eficiency EU4
Overall surface ㎡ 5.8 5.8 5.8 6.5 6.5 6.5 7.8 7.8
Fire resistance dass
I Electrical heaters
Total heating capacity kw 5 5 5 5 5 8 8 8
Quanlily nr 2 2 2 2 2 2 2 2
Material PTC
Humidifier
Capacily Kg/h 8-13 8-13 8-13 8-13 8-13 8-13 8-13 8-13
Absorbed power kw 6 6 6 6 6 6 6 6
Dimension&Weight
Height mm 1998 1998 1998 1998 1998 1998 1998 1998
Length mm 1000 1000 1000 1000 1000 1000 1750 1750
Depth mm 795 795 795 795 795 795 795 795
Weight kg 375 385 393 450 490 590 595 610
Sound level
Sound pressure level(3) db(A) 52 53 53 55 56.5 58 60 60

Network Cabinet Precision Air Conditioner Multi Function Air Cooler Type

Product Description
1.Air conditioning has the ability to operate 24 hours a day, 365 days without interruption.
2.Air conditioning has the ability to effectively cool the concentrated heat source.
3.The air conditioner has constant temperature and humidity control to ensure the life of electronic components.
4.Air conditioning has the ability of anti-interference and low noise.
5.The air conditioner has the ability of accurate temperature and humidity adjustment.
6.Air conditioning has the capacity of capacity expansion to adapt to the room expansion demand.

Network Cabinet Precision Air Conditioner Multi Function Air Cooler TypeNetwork Cabinet Precision Air Conditioner Multi Function Air Cooler TypeNetwork Cabinet Precision Air Conditioner Multi Function Air Cooler Type

Network Cabinet Precision Air Conditioner Multi Function Air Cooler Type

Network Cabinet Precision Air Conditioner Multi Function Air Cooler Type

Company Profile
HAIRF Air Conditioning Technology Co., Ltd. Established in 2003. HAIRF is a high-end commercial air-conditioning
service company and a leader in the air-conditioning industry. Central Air Conditioner Solution Provider. Because of us, time is
not cold, all seasons are spring. We are a collection technology service enterprise of central air conditioning sales, design,
installation and maintenance. specifically for office buildings, shopping malls, hotels, railway stations, hospitals, factories and so on.
