Air Cooled Precision Air Unit Floor Mouted AC 380v / 3p / 50hz

Product Categories
Hefei Hairf Network Power Co.,Ltd.
Contact Now

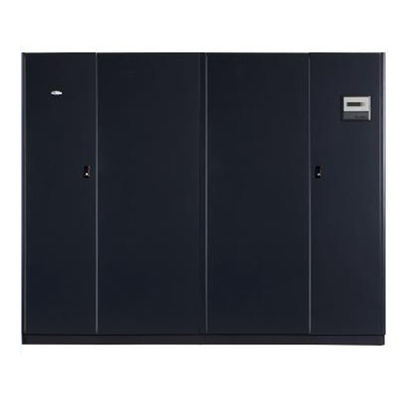

Air Cooled Precision Air Unit Floor Mouted AC 380v / 3p / 50hz

Brand Name : HAIRF

Model Number : HADR 0191

Certification : CE 3C RoHS ISO

Place of Origin : CHINA

MOQ : 1 set

Price : 1999~8000USD

Payment Terms : T/T

Supply Ability : 500 unit/month

Delivery Time : 25~30 working days

Packaging Details : wooden case for exporting shipping

NO. : precision air cooling unit

COOLING CAPACITY : 18.2KW

REFRIGERATION TYPE : AIR COOLED

INSTALLATION : FLOOR MOUNTED

MONITORING : YES

AUTOMATICAL CONTROL : YES

OUTDOOR : CONDENSER FAN

Contact Now

Air cooled Precision air cooling unit in datacenter floor mouted AC 380v/3p/50hz manufacturer offered

50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room

Model : HADR/HAUR 0201 0251 0261 0271 0301 0351 0401 1022
Cooling capaciy(1) kw 21.2 23.2 26.8 27.3 31.5 35.6 41.2 102
Air flow m³/h 6530 7050 7280 8500 9000 10000 11000 24200
EER 3.72 3.6 3.6 3.75 3.71 3.71 3.71 3.68
SHR 0.98 0.98 0.92 0.98 0.99 0.98 0.97 0.95
Compressor
Type Scroll
Capacily kw 5.2 5.5 5.9 6.2 7.4 8.3 9.3 22.4
Quantity nr 1 1 1 1 1 1 1 2
I F hned coil evaporator
Frontal surface ㎡ 0.8 0.8 0.8 1.4 1.4 1.4 1.7 2.8
Geometry mm 25X21.65
Type of fins Hydrophilic
Fin pich mm 1.8
Fan section
Type Centrigugal fan
Quantity nr 1 1 1 1 1 1 2 3
Absorbed curent A 2.5 2.5 2.8 3.2 3.5 4.1 4.4 16.5
Absorbed power W 1050 1100 1200 1300 1320 2000 2150 6300
AESP Max Speed(2) Pe 360 360 360 380 380 355 355 400
Air flter
Eficiency EU4
Overall surface ㎡ 5.8 5.8 5.8 6.5 6.5 6.5 7.8 13.5
Fire resistance dass
I Electrical heaters
Total heating capacity kw 5 5 5 5 5 8 8 24
Quanlily nr 2 2 2 2 2 2 2 4
Material PTC
Humidifier
Capacily Kg/h 8-13 8-13 8-13 8-13 8-13 8-13 8-13 8-13
Absorbed power kw 6 6 6 6 6 6 6 6
Dimension&Weight
Height mm 1998 1998 1998 1998 1998 1998 1998 1998
Length mm 1000 1000 1000 1000 1000 1000 1750 2500
Depth mm 795 795 795 795 795 795 795 795
Weight kg 375 385 393 450 490 590 595 1015
Sound level
Sound pressure level(3) db(A) 52 53 53 55 56.5 58 60 66

Air Cooled Precision Air Unit Floor Mouted AC 380v / 3p / 50hz
