Brand Name : HAIRF
Model Number : HADR 0652
Certification : CE 3C RoHS ISO
Place of Origin : CHINA
MOQ : 1 set
Price : 4999~8000USD
Payment Terms : T/T
Supply Ability : 600 unit/month
Delivery Time : 30-35days
Packaging Details : wooden case for exporting shipping
NAME : DIRECT EXPANSION UNIT
COOLING CAPACITY : 50KW
REFRIGERANT : R410A/ R407C
AIR FLOW : DOWFLOW
AIR VOLUMN : 12000M3/H
MONITORING : RS485/ 232
Precision Close Control Unit PAC Equipment For IT Racks Air Cooling With EC Fan Expansion Valve
Intelligent control Highly intelligent microprocessor control system, reliable operation, easy to use and maintain, strong anti-interference ability, can keep the unit in the best operating state; With various protection functions, it can also achieve unit joint control, and can be connected to a common open protocol to easily achieve floor control.
Precision close control unit PAC equipment for IT racks air cooling with EC fan expansion valve
HAIRF precision air conditioner floor mounted CCU with high cooling capacity 380v/3ph/50hz
Model:HADC/HAUC | 0061 | 0081 | 0101 | 0111 | 0131 | 0161 | 0191 | 0201 | |
Cooling capacity(1) | kw | 5.9 | 7.7 | 9.3 | 10.6 | 12.6 | 15.6 | 18.2 | 20.5 |
Air flow | m³/h | 1720 | 2150 | 2850 | 3200 | 3530 | 4800 | 5200 | 5700 |
EER | 3.6 | 3.65 | 3.55 | 3.65 | 3.6 | 3.65. | 3.65 | 3.66 | |
SHR | 0.95 | 0.93 | 0.95 | 0. 95 | 0.93 | 0.96 | 0.93 | 0.93 | |
| Compressor | |||||||||
Type | |||||||||
Capacity | kw | 1.5 | 1.9 | 2.2 | 2.3 | 3 | 3.6 | 4.3 | 5.3 |
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Finned coll evaporator | |||||||||
Frontal suface | M2 | 0.29 | 0.29 | 0.47 | 0.47 | 0.47 | 0.65 | 0.65 | 0.65 |
Geometry | mm | ||||||||
Type of fins | |||||||||
FIn pitch | mm | ||||||||
Fan section | |||||||||
Type | |||||||||
Quantity | nr | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
Absorbed current | A | 1.2 | 1.6 | 3.2 | 3.2 | 3.2 | 3.8 | 3.8 | 3.8 |
Absorbed power | W | 165 | 282 | 500 | 563 | 563 | 668 | 668 | 850 |
AESP Max Speed(2) | Pe | 180 | 180 | 180 | 250 | 250 | 250 | 250 | 250 |
Air flter | |||||||||
Eficiency | |||||||||
Overall surface | M2 | 2.2 | 2.2 | 3.6 | 3.6 | 3.6 | 5 | 5 | 5 |
Fire reslstance dlass | |||||||||
I Electrical heaters | |||||||||
Total heating capaclty | kw | 2 | 2 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 |
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
Material | |||||||||
Humidifier | |||||||||
Capacty | Kg/h | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
Absorbed power | kw | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
Dimension&Weight | |||||||||
Height | mm | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 |
Length | mm | 600 | 600 | 900 | 900 | 900 | 1200 | 1200 | 1200 |
Depth | mm | 449 | 449 | 49 | 449 | 449 | 449 | 449 | 449 |
Welght | kg | 150 | 157 | 195 | 210 | 230 | 245 | 255 | 270 |
Sound level | |||||||||
Sound pressure lel(3) | db(A) | 46 | 48 | 48 | 49 | 51 | 52 | 53 | 52 |
50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room
Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 1022 | |
Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 102 |
Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 24200 |
EER | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 | |
SHR | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 | |
Compressor | |||||||||
Type | Scroll | ||||||||
Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 22.4 |
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
I F hned coil evaporator | |||||||||
Frontal surface | m2 | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 2.8 |
Geometry | mm | 25X21.65 | |||||||
Type of fins | Hydrophilic | ||||||||
Fin pich | mm | 1.8 | |||||||
Fan section | |||||||||
Type | Centrigugal fan | ||||||||
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 16.5 |
Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 6300 |
AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 400 |
Air flter | |||||||||
Eficiency | EU4 | ||||||||
Overall surface | m2 | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 13.5 |
Fire resistance dass | |||||||||
I Electrical heaters | |||||||||
Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 24 |
Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
Material | PTC | ||||||||
Humidifier | |||||||||
Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Dimension&Weight | |||||||||
Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 2500 |
Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 1015 |
Sound level | |||||||||
Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 66 |
![]() |

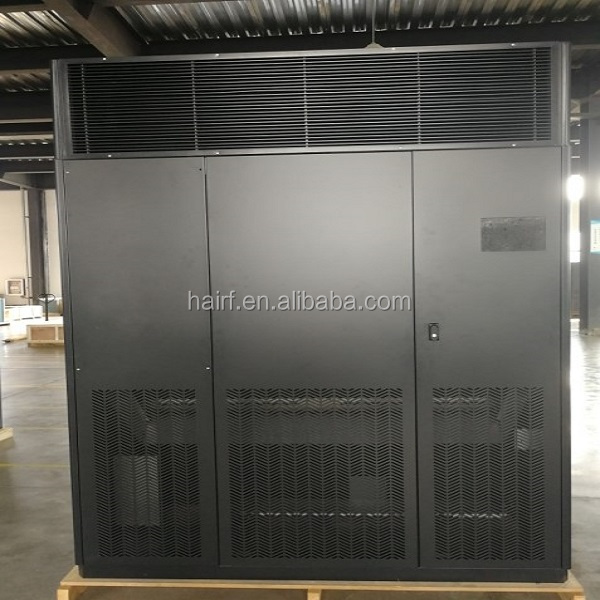

IT Racks Precision Close Control Unit With EC Fan Expansion Valve Images |
