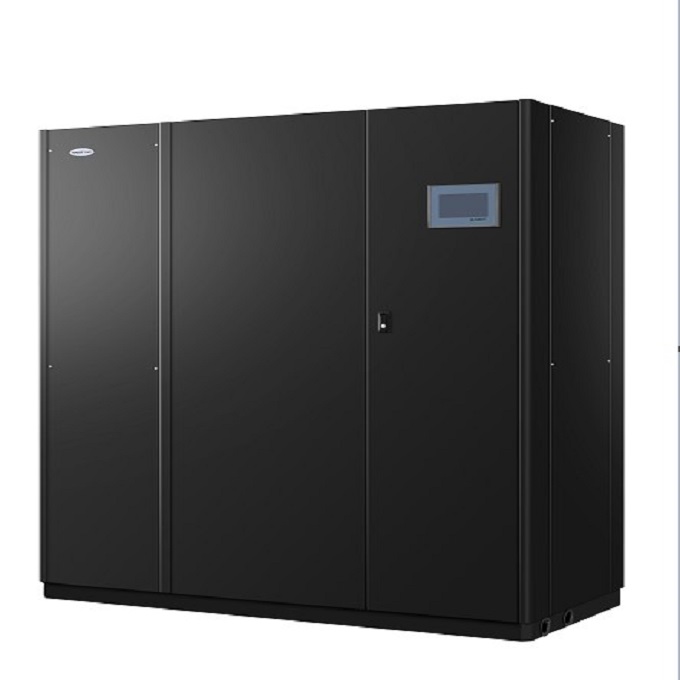

Split Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser Fan

Product Categories
Hefei Hairf Network Power Co.,Ltd.
Contact Now

Split Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser Fan

Brand Name : HAIRF

Model Number : HADR 0452

Certification : CE 3C RoHS ISO

Place of Origin : CN

MOQ : 1

Price : $3236-18000/set

Payment Terms : T/T

Supply Ability : 500set/month

Delivery Time : 30-35days

Packaging Details : wooden case

free Waranty : one year

coating : Black

air volumn : 8000m³

advantage : LARGE COOLING CAPACITY

Cooling capacity : 50kw

cooling : DX type

air flow : upflow

package : wooden pack

voltage : 220v/1p/60hz

compressor qty : 2pcs

Contact Now

Split Type Precision Air Conditioner Floor Mounted Type HVAC With Outdoor Condenser Fan

·Intelligent control

Fighly intelligent microprocessor control system, veliable operation, convenient use and maintenance, strong anti-inter-ference abillity, can keep the unit in the best operating state;
With various protection functions, it can also realze unit joint control, and can be connected to a common open protocolto easily realize building control (support RS485,RS232, ModBUS, LonWORKS, BacNET and lP protocol SNMP)

Split type precision air conditioner floor mounted type HVAC with outdoor condenser fan

Datacenter precision air cooling unit HAIRF precision air conditioner split type HVAC unit

50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room

Model : HADR/HAUR 0201 0251 0261 0271 0301 0351 0401 1022
Cooling capaciy(1) kw 21.2 23.2 26.8 27.3 31.5 35.6 41.2 102
Air flow m³/h 6530 7050 7280 8500 9000 10000 11000 24200
EER 3.72 3.6 3.6 3.75 3.71 3.71 3.71 3.68
SHR 0.98 0.98 0.92 0.98 0.99 0.98 0.97 0.95
Compressor
Type Scroll
Capacily kw 5.2 5.5 5.9 6.2 7.4 8.3 9.3 22.4
Quantity nr 1 1 1 1 1 1 1 2
I F hned coil evaporator
Frontal surface ㎡ 0.8 0.8 0.8 1.4 1.4 1.4 1.7 2.8
Geometry mm 25X21.65
Type of fins Hydrophilic
Fin pich mm 1.8
Fan section
Type Centrigugal fan
Quantity nr 1 1 1 1 1 1 2 3
Absorbed curent A 2.5 2.5 2.8 3.2 3.5 4.1 4.4 16.5
Absorbed power W 1050 1100 1200 1300 1320 2000 2150 6300
AESP Max Speed(2) Pe 360 360 360 380 380 355 355 400
Air flter
Eficiency EU4
Overall surface ㎡ 5.8 5.8 5.8 6.5 6.5 6.5 7.8 13.5
Fire resistance dass
I Electrical heaters
Total heating capacity kw 5 5 5 5 5 8 8 24
Quanlily nr 2 2 2 2 2 2 2 4
Material PTC
Humidifier
Capacily Kg/h 8-13 8-13 8-13 8-13 8-13 8-13 8-13 8-13
Absorbed power kw 6 6 6 6 6 6 6 6
Dimension&Weight
Height mm 1998 1998 1998 1998 1998 1998 1998 1998
Length mm 1000 1000 1000 1000 1000 1000 1750 2500
Depth mm 795 795 795 795 795 795 795 795
Weight kg 375 385 393 450 490 590 595 1015
Sound level
Sound pressure level(3) db(A) 52 53 53 55 56.5 58 60 66

Split Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser Fan

Split Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser Fan

Product Description
1. Air conditioning unit has the ability to operate 24 hours a day, 365 days without interruption.
2. Air coling unit-effectively cool the concentrated heat source.
3. The air conditioner unit with constant temperature and humidity control to ensure the life of electronic components.
4. Air conditioning unit with the ability of anti-interference and low noise dB.
5. Air conditioner CCU with accurate temperature and humidity adjustment.
6. Precision Air conditioner with capacity expansion to adapt to the room expansion demand.
7. close control unit with more accurate temperature and humidity control
8. Data center split type precision air conditioner for HVAC air cooling system

Split Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser FanSplit Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser FanSplit Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser Fan

Split Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser Fan

Split Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser Fan

Company Overview

Hairf, with more than 30 years’ R&D and manufacturing experience in server room equipment field, depending on world-class labs, inspection and production equipment, not only can provide specialized products to meet the exact requirement of user’s job site, but also provide a perfect total solution for server room. Now our product range include precision air conditioner, UPS and data center solution.

Hairf engineers, international sales and service team, are distributed all around the world in Mexico, Russia, Pakistan, Algeria, Indonesia, China, Philippines, Singapore, Kazakhstan, to ensure we can provide 24 hours service to more than fifty countries, which fully meet the user’s pre-sale technical support, equipment installation, equipment operation &maintenance, and spare parts supply etc.

Split Type Precision Crac HVAC Unit Floor Mounted With Outdoor Condenser Fan
