Server Room Close Control Unit 70kw With Large Cooling Capacity

Product Categories
Hefei Hairf Network Power Co.,Ltd.
Contact Now

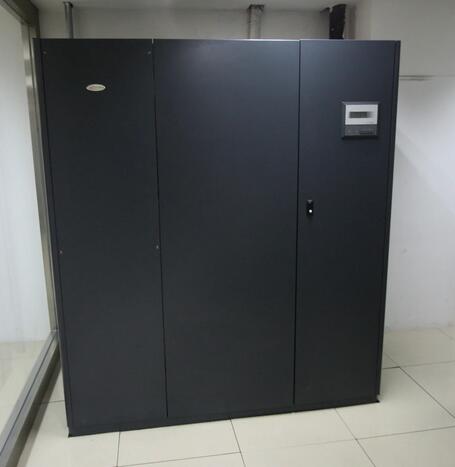

Server Room Close Control Unit 70kw With Large Cooling Capacity

Brand Name : HAIRF

Model Number : HADR 0752

Certification : CE ROHS ISO CCC

Place of Origin : china

MOQ : 1 set

Price : 3999~8000USD

Payment Terms : T/T

Supply Ability : 800 unit/month

Delivery Time : 25~30 working days

Packaging Details : wooden case for exporting shipping

Cooling capacity : 70kw

Product : PAC

Type : Air cooled

Air flow volumn : 12000m3/h

Origin : Hefei China

Contact Now

HAIRF 70kw close control unit for server room air conditioning with large cooling capacity

50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room

Model : HADR/HAUR 0201 0251 0261 0271 0301 0351 0401 1022
Cooling capaciy(1) kw 21.2 23.2 26.8 27.3 31.5 35.6 41.2 102
Air flow m³/h 6530 7050 7280 8500 9000 10000 11000 24200
EER 3.72 3.6 3.6 3.75 3.71 3.71 3.71 3.68
SHR 0.98 0.98 0.92 0.98 0.99 0.98 0.97 0.95
Compressor
Type Scroll
Capacily kw 5.2 5.5 5.9 6.2 7.4 8.3 9.3 22.4
Quantity nr 1 1 1 1 1 1 1 2
I F hned coil evaporator
Frontal surface ㎡ 0.8 0.8 0.8 1.4 1.4 1.4 1.7 2.8
Geometry mm 25X21.65
Type of fins Hydrophilic
Fin pich mm 1.8
Fan section
Type Centrigugal fan
Quantity nr 1 1 1 1 1 1 2 3
Absorbed curent A 2.5 2.5 2.8 3.2 3.5 4.1 4.4 16.5
Absorbed power W 1050 1100 1200 1300 1320 2000 2150 6300
AESP Max Speed(2) Pe 360 360 360 380 380 355 355 400
Air flter
Eficiency EU4
Overall surface ㎡ 5.8 5.8 5.8 6.5 6.5 6.5 7.8 13.5
Fire resistance dass
I Electrical heaters
Total heating capacity kw 5 5 5 5 5 8 8 24
Quanlily nr 2 2 2 2 2 2 2 4
Material PTC
Humidifier
Capacily Kg/h 8-13 8-13 8-13 8-13 8-13 8-13 8-13 8-13
Absorbed power kw 6 6 6 6 6 6 6 6
Dimension&Weight
Height mm 1998 1998 1998 1998 1998 1998 1998 1998
Length mm 1000 1000 1000 1000 1000 1000 1750 2500
Depth mm 795 795 795 795 795 795 795 795
Weight kg 375 385 393 450 490 590 595 1015
Sound level
Sound pressure level(3) db(A) 52 53 53 55 56.5 58 60 66

Server Room Close Control Unit 70kw With Large Cooling Capacity
