Brand Name : HAIRF
Model Number : HADR 0752
Certification : ce 3C RoHS ISO
Place of Origin : China
MOQ : 1 set
Price : 4999~8000USD
Payment Terms : T/T
Supply Ability : 500 unit/month
Delivery Time : 30-35days
Packaging Details : wooden case for exporting shipping
cooling capacity : 50kw
power : 220v
air supply : downflow
cool type : air cooled
application : computer room
Computer room air conditioning unit for server room
1. Precise and reliable
Careful design, rigorous laboratory testing, and comprehensive quality control to ensure that the unit has excellent reliability;
Parts of the world-renowned brands, ensuring high reliability and service life;
Intelligent microprocessor control system, which enables the unit is always running at its best.
Model:HADC/HAUC | 0061 | 0081 | 0101 | 0111 | 0131 | 0161 | 0191 | 0201 | |
Cooling capacity(1) | kw | 5.9 | 7.7 | 9.3 | 10.6 | 12.6 | 15.6 | 18.2 | 20.5 |
Air flow | m³/h | 1720 | 2150 | 2850 | 3200 | 3530 | 4800 | 5200 | 5700 |
EER | 3.6 | 3.65 | 3.55 | 3.65 | 3.6 | 3.65. | 3.65 | 3.66 | |
SHR | 0.95 | 0.93 | 0.95 | 0. 95 | 0.93 | 0.96 | 0.93 | 0.93 | |
| Compressor | |||||||||
Type | |||||||||
Capacity | kw | 1.5 | 1.9 | 2.2 | 2.3 | 3 | 3.6 | 4.3 | 5.3 |
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Finned coll evaporator | |||||||||
Frontal suface | M2 | 0.29 | 0.29 | 0.47 | 0.47 | 0.47 | 0.65 | 0.65 | 0.65 |
Geometry | mm | ||||||||
Type of fins | |||||||||
FIn pitch | mm | ||||||||
Fan section | |||||||||
Type | |||||||||
Quantity | nr | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
Absorbed current | A | 1.2 | 1.6 | 3.2 | 3.2 | 3.2 | 3.8 | 3.8 | 3.8 |
Absorbed power | W | 165 | 282 | 500 | 563 | 563 | 668 | 668 | 850 |
AESP Max Speed(2) | Pe | 180 | 180 | 180 | 250 | 250 | 250 | 250 | 250 |
Air flter | |||||||||
Eficiency | |||||||||
Overall surface | M2 | 2.2 | 2.2 | 3.6 | 3.6 | 3.6 | 5 | 5 | 5 |
Fire reslstance dlass | |||||||||
I Electrical heaters | |||||||||
Total heating capaclty | kw | 2 | 2 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 |
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
Material | |||||||||
Humidifier | |||||||||
Capacty | Kg/h | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
Absorbed power | kw | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
Dimension&Weight | |||||||||
Height | mm | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 |
Length | mm | 600 | 600 | 900 | 900 | 900 | 1200 | 1200 | 1200 |
Depth | mm | 449 | 449 | 49 | 449 | 449 | 449 | 449 | 449 |
Welght | kg | 150 | 157 | 195 | 210 | 230 | 245 | 255 | 270 |
Sound level | |||||||||
Sound pressure lel(3) | db(A) | 46 | 48 | 48 | 49 | 51 | 52 | 53 | 52 |
50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room
Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 1022 | |
Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 102 |
Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 24200 |
EER | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 | |
SHR | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 | |
Compressor | |||||||||
Type | Scroll | ||||||||
Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 22.4 |
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
I F hned coil evaporator | |||||||||
Frontal surface | m2 | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 2.8 |
Geometry | mm | 25X21.65 | |||||||
Type of fins | Hydrophilic | ||||||||
Fin pich | mm | 1.8 | |||||||
Fan section | |||||||||
Type | Centrigugal fan | ||||||||
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 16.5 |
Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 6300 |
AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 400 |
Air flter | |||||||||
Eficiency | EU4 | ||||||||
Overall surface | m2 | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 13.5 |
Fire resistance dass | |||||||||
I Electrical heaters | |||||||||
Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 24 |
Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
Material | PTC | ||||||||
Humidifier | |||||||||
Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Dimension&Weight | |||||||||
Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 2500 |
Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 1015 |
Sound level | |||||||||
Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 66 |
![]() |

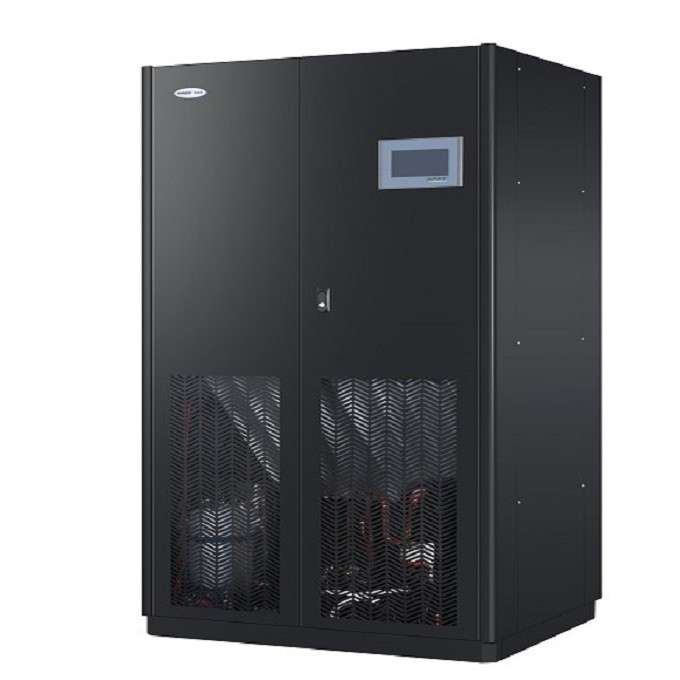

Downflow Computer Room Air Conditioning Unit For Server Room Images |
