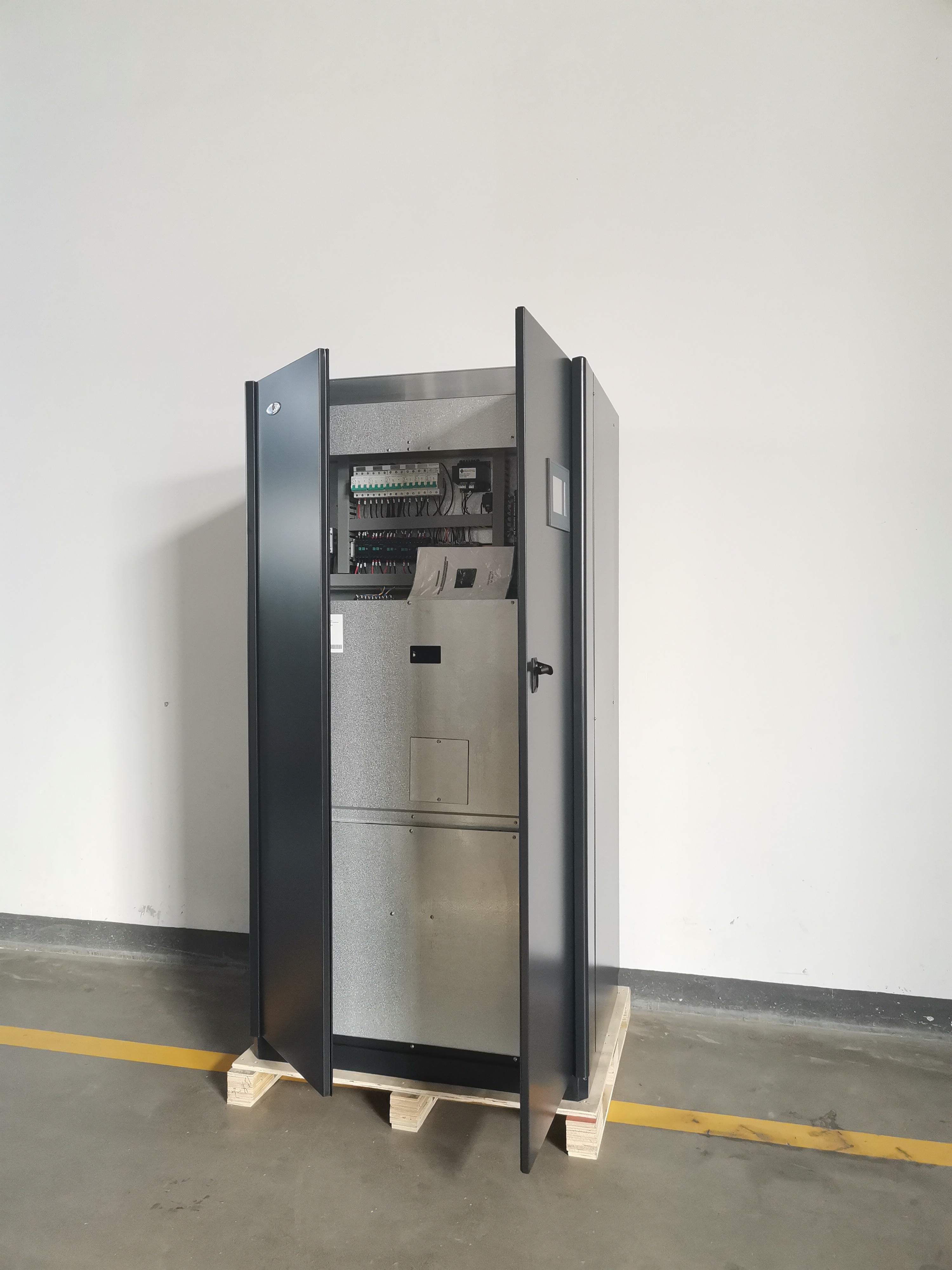

Computer Room Air Conditioning Uninterrupted operation large cooling capacity
Application/Usage
- High-tech room
- Call centers
- Internet providers
- Server rooms
- Control rooms
- Museums
- Luxury hotels
| Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 0451 |
| Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 44 |
| Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 13000 |
| EER | | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 |
| SHR | | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 |
| Compressor | | | | | | | | | |
| Type | | Scroll |
| Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 10.1 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| I F hned coil evaporator | | | | | | | | | |
| Frontal surface | ㎡ | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 1.7 |
| Geometry | mm | 25X21.65 |
| Type of fins | | Hydrophilic |
| Fin pich | mm | 1.8 |
| Fan section | | | | | | | | | |
| Type | | Centrigugal fan |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 4.9 |
| Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 2400 |
| AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 355 |
| Air flter | | | | | | | | | |
| Eficiency | | EU4 |
| Overall surface | ㎡ | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 7.8 |
| Fire resistance dass | | | | | | | | | |
| I Electrical heaters | | | | | | | | | |
| Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 8 |
| Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Material | | PTC |
| Humidifier | | | | | | | | | |
| Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
| Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension&Weight | | | | | | | | | |
| Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 1750 |
| Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
| Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 610 |
| Sound level | | | | | | | | | |
| Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 60 |
1 High quality control component
It strictly complies with CE and IEC standards and is empowered with advanced electric control technology and able to work under a power source of 380V±20%. In addition, it is installed with a power supply protection module, enabling it to make a selection of protective value in a range of 380V±50%. When voltage goes beyond the selected range, it will automatically protect the unit. While the voltage becomes normal, it will automatically restart the unit.
2 Evaporator
An efficient evaporator made from quality material with advanced professional technology and featuring large heat exchange area and the realization of higher sensible heat factor of precision air conditioning unit.
3 Expansion Valve
Expansion valve adopts advanced thermal expansion valves with strong reliability and stability and can precisely control the supply of refrigerant. In order to achieve the reduction of energy consumption for refrigeration equipment, we employ advanced electronic expansion valves in high-performance precision air conditioning units to realize less energy
consumption.
4 Humidifier
An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all
controlled by computer, the auto cleaning program for the humidifier cylinder ensure normal humidification effciency of the clinder.
5 Filter
Air filter which is EU4 standard which is metallic bracket , filtering the dust and particulate effectively by air circulation , then purifying the air environment of telecom room.
6 Cabinet
With unique frame design and black steel framewor demonstrating consummate production technology, professional design and elegant appearance, the cabinet guarantees the safety of the unit under any transport condition and operating environment.
7 Scroll Compressor
The core power of the unit is from Copeland hermetic scroll compressor that guarantees the high efficiency ,low noise and the long life of the unit.
8 Indoor blower fan
A blow fan adopts direct drive centrifugal fan with backward curved blades, the range of static pressure can be adjusted from 0 to 400pa, realizing the continuous operation of 365 days* 24 hours, 10 years’ average life.
The high-performance unit employ energy-saving EC fan controlled by 0-10V signal,DC driven and stepless speed regulation,which is more excellent than traditional fan in energy-saving filed.
9 Heater
An electric heater with perfect overheat protection function and ionization resistance, able to meet environmental requirements of the small heat-load machine rooms for base stations in cold arctic-alpine area.
10 Condenser
With an enclosure of anti-corrosion alloy that ensures service life and appearance of the is elaborately designed and able to satisfy the environmental protection requirements on noise, and a fan speed regulator that controls the rotating speed under different temperature and ensures sound operating effect and energy saving.
FAQ
Q:What are your factory main products?
A:Precision Air Conditioners,UPS & Data center.
Q:How to choose Precision air conditioner and UPS brand?
A:Hairf brand have reliable quality and reasonable price.
Q:What is your company strength?
A:A strong team with more than 20 years of experiences of manufacturing air conditioners and
UPS,we have our own Lab,R&D Center,Assembly Line, QC Staff & Equipments.
Q:What about the Warranty Service?
A:AII products have 1 year guarantee under no artificlal damage.
