Brand Name : HAIRF
Model Number : H0161
Certification : CE 3C RoHS ISO
Place of Origin : CN
MOQ : 1
Price : $3236-18000/set
Payment Terms : T/T
Supply Ability : 500set/month
Delivery Time : 35-45days
Packaging Details : wooden case
Waranty : one year
Color : Black
Flow : 1720-24200m³
Selling point : constantly temperature and humidify
Cooling capacity : 5.9-102kw
cooling type : air cooled type
air flow : level
package : wooden pack
Precision Cooling Unit used in Data Center telecom precision air conditioner
Technology
(1) Noise is measured in free field 2m apart from the unit.
(2) For higher External Static Pressure (ESP), please contact Hairf.
(3) Displ acement temperature 24C,relative humidity 50%:
ambient temperature 40 C
Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 0451 | |
Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 44 |
Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 13000 |
EER | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 | |
SHR | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 | |
Compressor | |||||||||
Type | Scroll | ||||||||
Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 10.1 |
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
I F hned coil evaporator | |||||||||
Frontal surface | ㎡ | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 1.7 |
Geometry | mm | 25X21.65 | |||||||
Type of fins | Hydrophilic | ||||||||
Fin pich | mm | 1.8 | |||||||
Fan section | |||||||||
Type | Centrigugal fan | ||||||||
Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 4.9 |
Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 2400 |
AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 355 |
Air flter | |||||||||
Eficiency | EU4 | ||||||||
Overall surface | ㎡ | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 7.8 |
Fire resistance dass | |||||||||
I Electrical heaters | |||||||||
Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 8 |
Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Material | PTC | ||||||||
Humidifier | |||||||||
Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Dimension&Weight | |||||||||
Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 1750 |
Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 610 |
Sound level | |||||||||
Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 60 |
FAQ
Q:What are your factory main products?
A:Precision Air Conditioners,UPS & Data center.
Q:How to choose Precision air conditioner and UPS brand?
A:Hairf brand have reliable quality and reasonable price.
Q:What is your company strength?
A:A strong team with more than 20 years of experiences of manufacturing air conditioners and
UPS,we have our own Lab,R&D Center,Assembly Line, QC Staff & Equipments.
Q:What about the Warranty Service?
A:AII products have 1 year guarantee under no artificlal damage.
![]() |

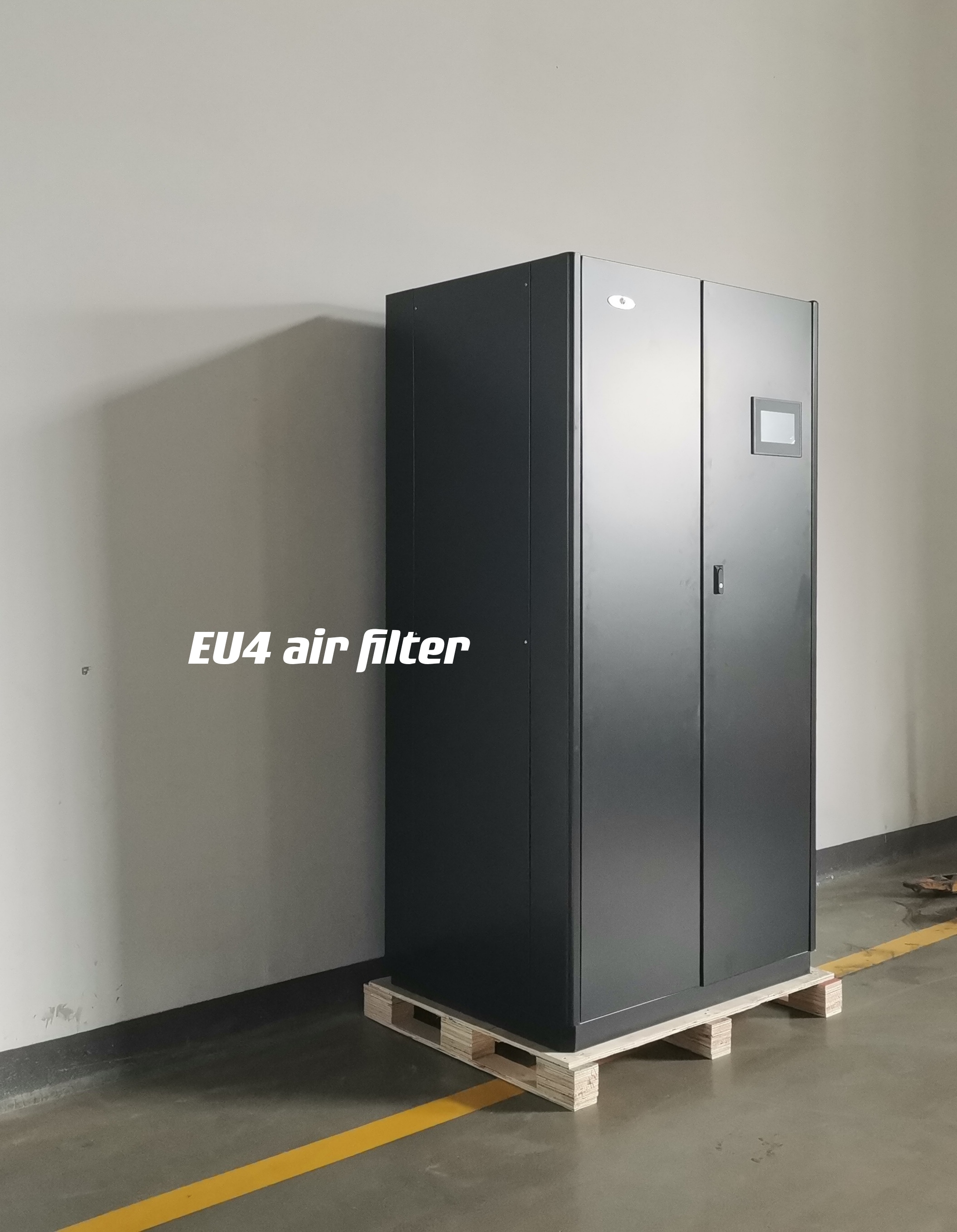

CE RoHS Approval EU4 Air Filter Precision Cooling Unit For High Tech Room Images |
