5.9kw 1000mm Length Precision Air Conditioning System air Cooling
Main Features of HAIRF Precise Air Conditioning
-
Microprocessor control
- Highly sensible cooling system.
- Intelligent dehumidification, without reduction in air flow.
- Fan is provided with speed control so that the cooling performance and the noise level of the unit can be tailored to application.
- Lower power consumption.
- Intelligent supervision and reliability through monitoring of all components with precise and clear display of any malfunction or abnormal conditions.
- Accessories can be incorporated
- High fire tolerance.
- High pressure strength.
- Compact in design and all the internal components are easily accessible.
- In conformity with set standards
- Intelligent dehumidification, without reduction in air flow.
- Fan is provided with speed control so that the cooling performance and the noise level of the unit can be tailored to application.
- Lower power consumption.
- Intelligent supervision and reliability through monitoring of all components with precise and clear display of any malfunction or abnormal conditions.
- Accessories can be incorporated
- High fire tolerance.
- High pressure strength.
- Compact in design and all the internal components are easily accessible.
- In conformity with set standards
| Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 0451 |
| Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 44 |
| Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 13000 |
| EER | | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 |
| SHR | | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 |
| Compressor | | | | | | | | | |
| Type | | Scroll |
| Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 10.1 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| I F hned coil evaporator | | | | | | | | | |
| Frontal surface | ㎡ | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 1.7 |
| Geometry | mm | 25X21.65 |
| Type of fins | | Hydrophilic |
| Fin pich | mm | 1.8 |
| Fan section | | | | | | | | | |
| Type | | Centrigugal fan |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 4.9 |
| Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 2400 |
| AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 355 |
| Air flter | | | | | | | | | |
| Eficiency | | EU4 |
| Overall surface | ㎡ | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 7.8 |
| Fire resistance dass | | | | | | | | | |
| I Electrical heaters | | | | | | | | | |
| Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 8 |
| Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Material | | PTC |
| Humidifier | | | | | | | | | |
| Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
| Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension&Weight | | | | | | | | | |
| Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 1750 |
| Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
| Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 610 |
| Sound level | | | | | | | | | |
| Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 60 |
Humidifier
An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all
controlled by computer, the auto cleaning program for the humidifier cylinder ensure normal humidification effciency of the clinder.
Filter
Air filter which is EU4 standard which is metallic bracket , filtering the dust and particulate effectively by air circulation , then purifying the air environment of telecom room.

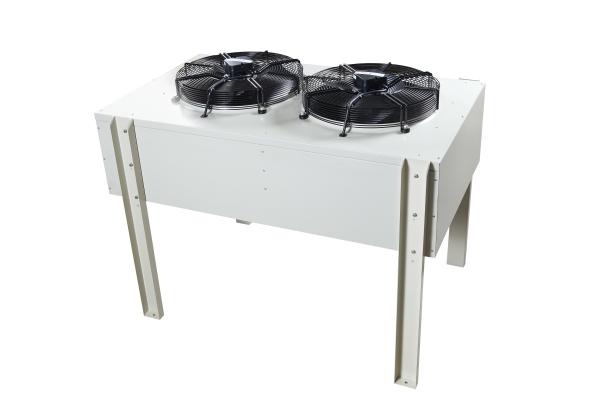

Condenser
With an enclosure of anti-corrosion alloy that ensures service life and appearance of the is elaborately designed and able to satisfy the environmental protection requirements on noise, and a fan speed regulator that controls the rotating speed under different temperature and ensures sound operating effect and energy saving.
