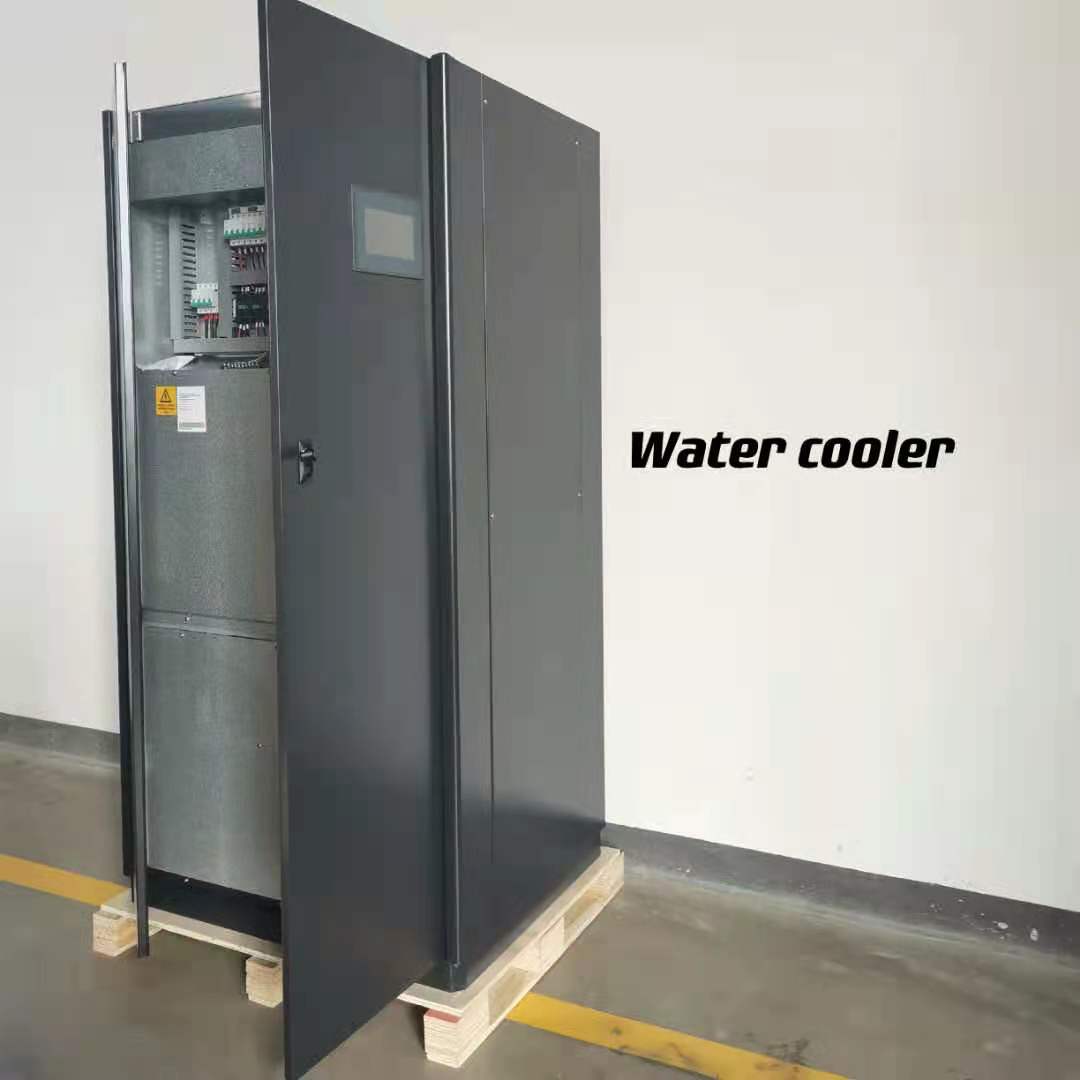

EU4 900mm Length Precision Close Control Unit Air Conditioning
Main Features of HAIRF Precise Air Conditioning
- Accuracy temperature and humidity control.
- Intelligent dehumidification, without reduction in air flow.
- Fan is provided with speed control so that the cooling performance and the noise level of the unit can be tailored to application.
- Lower power consumption.
- Intelligent supervision and reliability through monitoring of all components with precise and clear display of any malfunction or abnormal conditions.
- Accessories can be incorporated
- High fire tolerance.
- High pressure strength.
- Compact in design and all the internal components are easily accessible.
- In conformity with set standards
| Model:HADC/HAUC | 0061 | 0081 | 0101 | 0111 | 0131 | 0161 | 0191 | 0201 |
| Cooling capacity(1) | kw | 5.9 | 7.7 | 9.3 | 10.6 | 12.6 | 15.6 | 18.2 | 20.5 |
| Air flow | m³/h | 1720 | 2150 | 2850 | 3200 | 3530 | 4800 | 5200 | 5700 |
| EER | | 3.6 | 3.65 | 3.55 | 3.65 | 3.6 | 3.65. | 3.65 | 3.66 |
| SHR | | 0.95 | 0.93 | 0.95 | 0. 95 | 0.93 | 0.96 | 0.93 | 0.93 |
| | Compressor | | | | | | | | | |
| Type | | | | | | | | | |
| Capacity | kw | 1.5 | 1.9 | 2.2 | 2.3 | 3 | 3.6 | 4.3 | 5.3 |
| Quantity | nr | 1 | 1 | 1 | | 1 | 1 | 1 | 1 |
| Finned coll evaporator | | | | | | | | | |
| Frontal suface | ㎡ | 0.29 | 0.29 | 0.47 | 0.47 | 0.47 | 0.65 | 0.65 | 0.65 |
| Geometry | mm | | | | | | | | |
| Type of fins | | | | | | | | | |
| FIn pitch | mm | | | | | | | | |
| Fan section | | | | | | | | | |
| Type | | | | | | | | | |
| Quantity | nr | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Absorbed current | A | 1.2 | 1.6 | 3.2 | 3.2 | 3.2 | 3.8 | 3.8 | 3.8 |
| Absorbed power | W | 165 | 282 | 500 | 563 | 563 | 668 | 668 | 850 |
| AESP Max Speed(2) | Pe | 180 | 180 | 180 | 250 | 250 | 250 | 250 | 250 |
| Air flter | | | | | | | | | |
| Eficiency | | | | | | | | | |
| Overall surface | ㎡ | 2.2 | 2.2 | 3.6 | 3.6 | 3.6 | 5 | 5 | 5 |
| Fire reslstance dlass | | | | | | | | | |
| I Electrical heaters | | | | | | | | | |
| Total heating capaclty | kw | 2 | 2 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Material | | | | | | | | | |
| Humidifier | | | | | | | | | |
| Capacty | Kg/h | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Absorbed power | kw | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
| Dimension&Weight | | | | | | | | | |
| Height | mm | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 |
| Length | mm | 600 | 600 | 900 | 900 | 900 | 1200 | 1200 | 1200 |
| Depth | mm | 449 | 449 | 49 | 449 | 449 | 449 | 449 | 449 |
| Welght | kg | 150 | 157 | 195 | 210 | 230 | 245 | 255 | 270 |
| Sound level | | | | | | | | | |
| Sound pressure lel(3) | db(A) | 46 | 48 | 48 | 49 | 51 | 52 | 53 | 52 |
Evaporator
An efficient evaporator made from quality material with advanced professional technology and featuring large heat exchange area and the realization of higher sensible heat factor of precision air conditioning unit.
Expansion Valve
Expansion valve adopts advanced thermal expansion valves with strong reliability and stability and can precisely control the supply of refrigerant. In order to achieve the reduction of energy consumption for refrigeration equipment, we employ advanced electronic expansion valves in high-performance precision air conditioning units to realize less energy
consumption.
Scroll Compressor
The core power of the unit is from Copeland hermetic scroll compressor that guarantees the high efficiency ,low noise and the long life of the unit.
FAQ
Q:What are your factory main products?
A:Precision Air Conditioners,UPS & Data center.
Q:How to choose Precision air conditioner and UPS brand?
A:Hairf brand have reliable quality and reasonable price.
Q:What is your company strength?
A:A strong team with more than 20 years of experiences of manufacturing air conditioners and
UPS,we have our own Lab,R&D Center,Assembly Line, QC Staff & Equipments.
Q:What about the Warranty Service?
A:AII products have 1 year guarantee under no artificlal damage.
