Year Round Operation High Accuracy Precision Cooling Unit Air Cooled Type

Product Categories
Hefei Hairf Network Power Co.,Ltd.
Contact Now

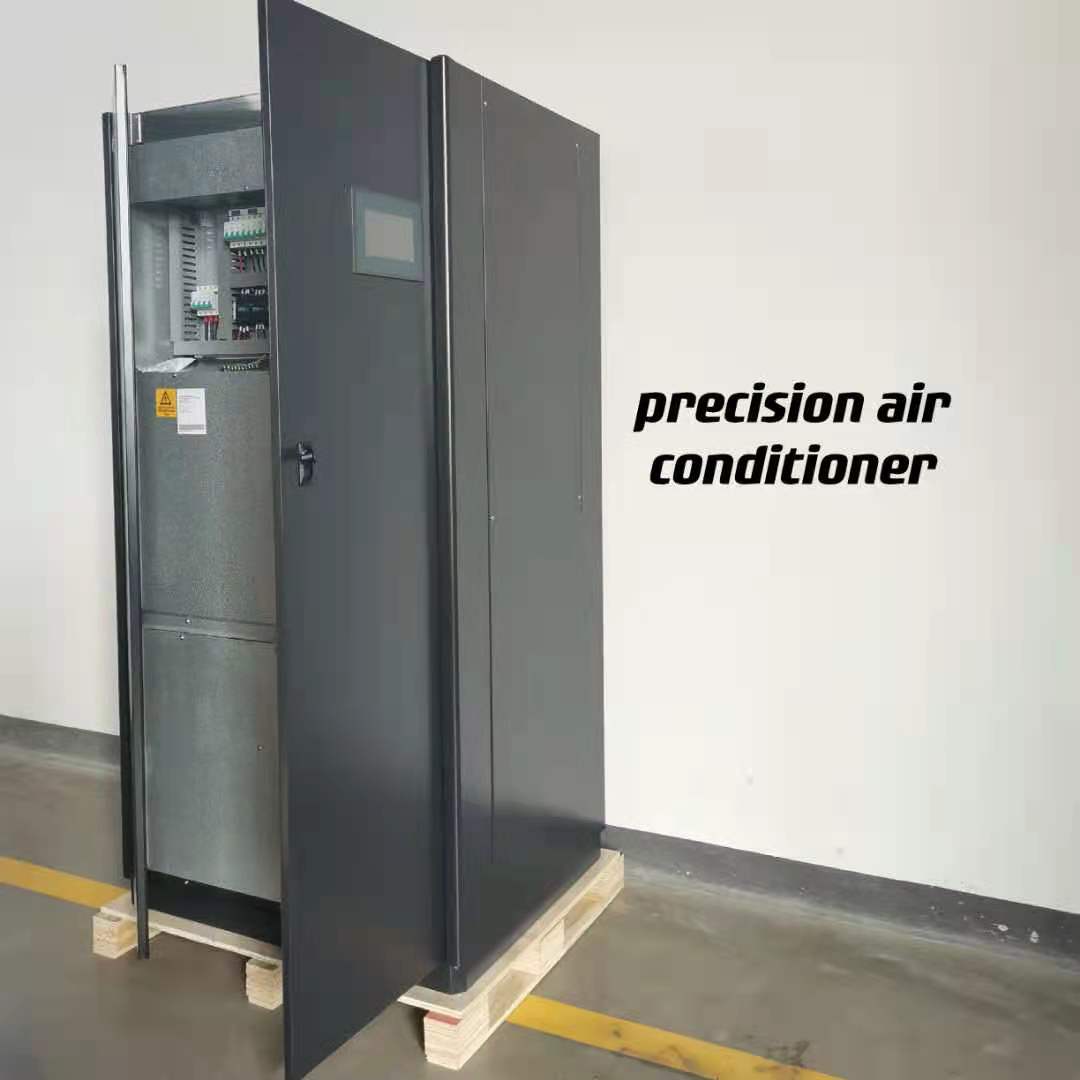

Year Round Operation High Accuracy Precision Cooling Unit Air Cooled Type

Brand Name : HAIRF

Model Number : H0271

Certification : CE 3C RoHS ISO

Place of Origin : CN

MOQ : 1

Price : $3236-18000/set

Payment Terms : T/T

Supply Ability : 500set/month

Delivery Time : 35-45days

Packaging Details : wooden case

Warranty : one year

Color : Black

Flow : 1720-24200m³

Selling point : precise control

Cooling capacity : 5.9-102kw

cooling type : air cooled type

package : wooden pack

brand : HAIRF

Contact Now

Year-round operation high accuracy precision air conditioner air/water cooler

Objectives of Precision Air Conditioning
Precision air conditioners are designed specifically to meet following objectives to be achieved with a very high degree of reliability.

  • 1. Air temperature control (± 1.0°C).
  • 2. Air humidity control (± 7/8%).
  • 3. High airflow rate.
  • 4. Year-round operation (24 hours a day, 365 days a year), without any interruption.

Year Round Operation High Accuracy Precision Cooling Unit Air Cooled Type

Model : HADR/HAUR 0201 0251 0261 0271 0301 0351 0401 0451
Cooling capaciy(1) kw 21.2 23.2 26.8 27.3 31.5 35.6 41.2 44
Air flow m³/h 6530 7050 7280 8500 9000 10000 11000 13000
EER 3.72 3.6 3.6 3.75 3.71 3.71 3.71 3.68
SHR 0.98 0.98 0.92 0.98 0.99 0.98 0.97 0.95
Compressor
Type Scroll
Capacily kw 5.2 5.5 5.9 6.2 7.4 8.3 9.3 10.1
Quantity nr 1 1 1 1 1 1 1 1
I F hned coil evaporator
Frontal surface ㎡ 0.8 0.8 0.8 1.4 1.4 1.4 1.7 1.7
Geometry mm 25X21.65
Type of fins Hydrophilic
Fin pich mm 1.8
Fan section
Type Centrigugal fan
Quantity nr 1 1 1 1 1 1 2 2
Absorbed curent A 2.5 2.5 2.8 3.2 3.5 4.1 4.4 4.9
Absorbed power W 1050 1100 1200 1300 1320 2000 2150 2400
AESP Max Speed(2) Pe 360 360 360 380 380 355 355 355
Air flter
Eficiency EU4
Overall surface ㎡ 5.8 5.8 5.8 6.5 6.5 6.5 7.8 7.8
Fire resistance dass
I Electrical heaters
Total heating capacity kw 5 5 5 5 5 8 8 8
Quanlily nr 2 2 2 2 2 2 2 2
Material PTC
Humidifier
Capacily Kg/h 8-13 8-13 8-13 8-13 8-13 8-13 8-13 8-13
Absorbed power kw 6 6 6 6 6 6 6 6
Dimension&Weight
Height mm 1998 1998 1998 1998 1998 1998 1998 1998
Length mm 1000 1000 1000 1000 1000 1000 1750 1750
Depth mm 795 795 795 795 795 795 795 795
Weight kg 375 385 393 450 490 590 595 610
Sound level
Sound pressure level(3) db(A) 52 53 53 55 56.5 58 60 60


Evaporator
An efficient evaporator made from quality material with advanced professional technology and featuring large heat exchange area and the realization of higher sensible heat factor of precision air conditioning unit.
Year Round Operation High Accuracy Precision Cooling Unit Air Cooled Type

Humidifier
An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all
controlled by computer, the auto cleaning program for the humidifier cylinder ensure normal humidification effciency of the clinder.
Year Round Operation High Accuracy Precision Cooling Unit Air Cooled Type

Heater
An electric heater with perfect overheat protection function and ionization resistance, able to meet environmental requirements of the small heat-load machine rooms for base stations in cold arctic-alpine area.
Year Round Operation High Accuracy Precision Cooling Unit Air Cooled Type

Year Round Operation High Accuracy Precision Cooling Unit Air Cooled Type
Year Round Operation High Accuracy Precision Cooling Unit Air Cooled Type
FAQ
Q:What are your factory main products?
A:Precision Air Conditioners,UPS & Data center.
Q:How to choose Precision air conditioner and UPS brand?
A:Hairf brand have reliable quality and reasonable price.
Q:What is your company strength?
A:A strong team with more than 20 years of experiences of manufacturing air conditioners and
UPS,we have our own Lab,R&D Center,Assembly Line, QC Staff & Equipments.
Q:What about the Warranty Service?
A:AII products have 1 year guarantee under no artificlal damage.
