Smart Control 6.3kw 2600-5600m3 Precision Cooling Unit For Server Room

Product Categories
Hefei Hairf Network Power Co.,Ltd.
Contact Now

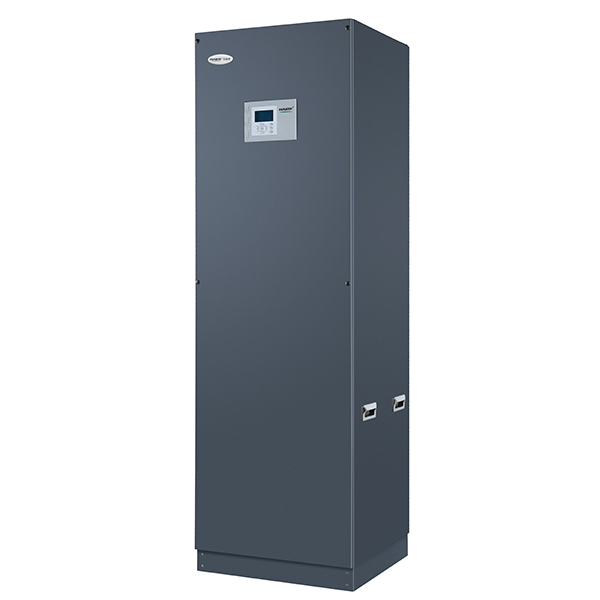

Smart Control 6.3kw 2600-5600m3 Precision Cooling Unit For Server Room

Brand Name : HAIRF

Model Number : P5000

Certification : CE 3C RoHS ISO

Place of Origin : CN

MOQ : 1

Price : $3236-18000/set

Payment Terms : T/T

Supply Ability : 500set/month

Delivery Time : 35-45days

Packaging Details : wooden case

Warranty : one year

Color : Black

Flow : 2600-5600m³

Selling point : competitive price

Cooling capacity : 6.3-20.3kw

cooling type : air cooled type

package : wooden pack

brand : HAIRF

Contact Now

Smart control air cooler Precision air conditioner Cooling Unit used in server room

Application/Usage

  • Data-processing centers
  • Call centers
  • Internet providers
  • Server rooms
  • Control rooms
  • Museums
  • Luxury hotels

Smart Control 6.3kw 2600-5600m3 Precision Cooling Unit For Server Room

Model P5000 P7500 P12500 P14000 P17500 P20000
Nominal cooling capacity (KW) 6.3 8.2 12. 7 14.1 17.5 20. 3
Air flow(m2/h) 1500 1850 2700 3000 3700 4100
SHR 0.92 0.93 0.92. 0. 92 0.91 0.93
Compressor Hermetic scroll Hermetic scroll Hermetic scroll Hermetic scroll Hermetic scroll Hermetic scroll
Compressor quantity 1 1 1 1 1 1
Indoor blower fan Back curved blades Back curved blades Back curved blades Back curved blades Back curved blades Back curved blades
Indoor blower fan quantity centrifugal fan centrifugal fan centrifugal fan centrifugal fan centrifugal fan centrifugal fan
Heater 1 1 1 1 1 1
Rated power (KI) PTC PTC PTC PTC PTC PIC
Humidifier 2 2 2 2 2.5 2.5
Air displacement Electrode(optional) Electrode (optional) Electrode (optional) Electrode (optional) Electrode (optional) Elctrode (optional)
Air supply Front Front Front Front Front Front
Indoor unit dimension(mn) Front Front Front Front Front Front
Outdoor unit dimension (mm) 600x500x1900 600x500x1740 600x500x1740 600x500x1740 750x750x1900 900x800x1800
Indoor unit weight (kg) 885x380x720 810x400x1020 950x350x1240 950x350x1240 1035x380x825 1035x380x825
Outdoor unit weight 0kg) 155 165 170 172 194 200
Indoor unit noise (dB) 86 38 39 40 42.5 43.5
Outdoor unit noise (dB) 52 52 55 57 6 61
Controller language 58 58 59 60 60 62
Communicat ion interface English . English English English English English
Communication protocol RS485 RS485 RS485 RS485 RS485 RS485
Power Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU
supply (220 or 380V) /50Hz| (220 or 380V) /50Hz (220 or 380V) /50Hz (220 or 380V) /50Hz 380V/50Hz 380V/50Hz
Gas pipe diameter (mm) 6 16 16 16 19 19
Liquid pipe diameter(mm) 12 12 12 12 16 16

Objectives of Precision Air Conditioning
Precision air conditioners are designed specifically to meet following objectives to be achieved with a very high degree of reliability.

  • 1. Air temperature control (± 1.0°C).
  • 2. Air humidity control (± 7/8%).
  • 3. High airflow rate.
  • 4. Year-round operation (24 hours a day, 365 days a year), without any interruption.

Evaporator
An efficient evaporator made from quality material with advanced professional technology and featuring large heat exchange area and the realization of higher sensible heat factor of precision air conditioning unit.
Smart Control 6.3kw 2600-5600m3 Precision Cooling Unit For Server Room
Scroll Compressor
The core power of the unit is from Copeland hermetic scroll compressor that guarantees the high efficiency ,low noise and the long life of the unit.
Smart Control 6.3kw 2600-5600m3 Precision Cooling Unit For Server Room
Condenser
With an enclosure of anti-corrosion alloy that ensures service life and appearance of the is elaborately designed and able to satisfy the environmental protection requirements on noise, and a fan speed regulator that controls the rotating speed under different temperature and ensures sound operating effect and energy saving.

Smart Control 6.3kw 2600-5600m3 Precision Cooling Unit For Server Room

Smart Control 6.3kw 2600-5600m3 Precision Cooling Unit For Server Room
Smart Control 6.3kw 2600-5600m3 Precision Cooling Unit For Server Room

Why Us?
HeFei HAIRF international trading., ltd provides solutions for any type of environment friendly precise air conditioning need.
Being precision air conditioner professional manufaturer, we have more than 30years R&D and manufature experience. We can provide competitive discount on our products and are able to sell these at lower than market rates and also provide much better after-sales sales service.
