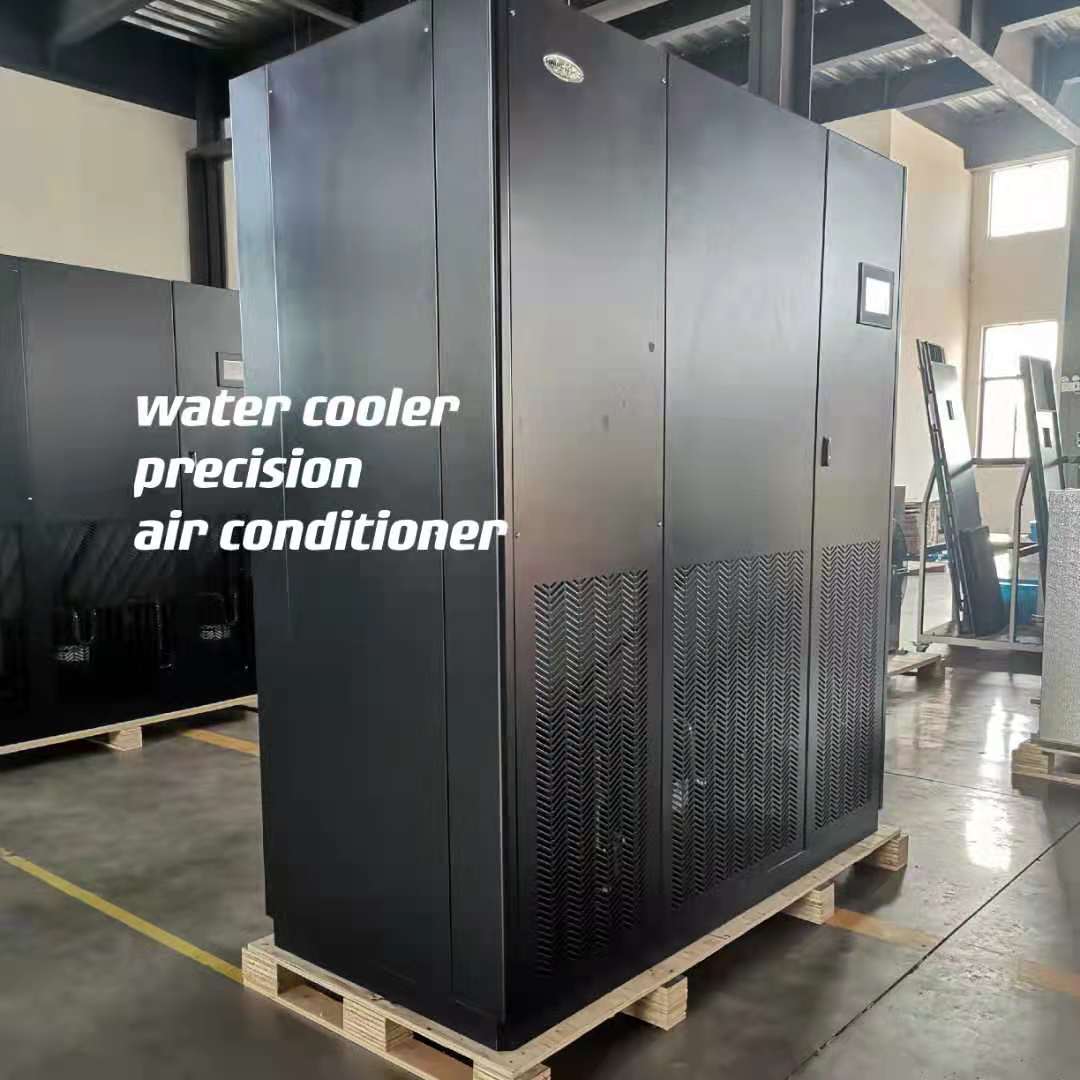

Graphic display air cooler/water cooler Precision Cooling Unit
Application/Usage
- Data centers
- Telecom
- Internet providers
- Server rooms
- Control rooms
- Museums
- Luxury hotel
| Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 0451 |
| Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 44 |
| Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 13000 |
| EER | | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 |
| SHR | | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 |
| Compressor | | | | | | | | | |
| Type | | Scroll |
| Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 10.1 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| I F hned coil evaporator | | | | | | | | | |
| Frontal surface | ㎡ | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 1.7 |
| Geometry | mm | 25X21.65 |
| Type of fins | | Hydrophilic |
| Fin pich | mm | 1.8 |
| Fan section | | | | | | | | | |
| Type | | Centrigugal fan |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 4.9 |
| Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 2400 |
| AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 355 |
| Air flter | | | | | | | | | |
| Eficiency | | EU4 |
| Overall surface | ㎡ | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 7.8 |
| Fire resistance dass | | | | | | | | | |
| I Electrical heaters | | | | | | | | | |
| Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 8 |
| Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Material | | PTC |
| Humidifier | | | | | | | | | |
| Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
| Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension&Weight | | | | | | | | | |
| Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 1750 |
| Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
| Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 610 |
| Sound level | | | | | | | | | |
| Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 60 |
High quality control component
It strictly complies with CE and IEC standards and is empowered with advanced electric control technology and able to work under a power source of 380V±20%. In addition, it is installed with a power supply protection module, enabling it to make a selection of protective value in a range of 380V±50%. When voltage goes beyond the selected range, it will automatically protect the unit. While the voltage becomes normal, it will automatically restart the unit.
Indoor blower fan
A blow fan adopts direct drive centrifugal fan with backward curved blades, the range of static pressure can be adjusted from 0 to 400pa, realizing the continuous operation of 365 days* 24 hours, 10 years’ average life.
The high-performance unit employ energy-saving EC fan controlled by 0-10V signal,DC driven and stepless speed regulation,which is more excellent than traditional fan in energy-saving filed.
Heater
An electric heater with perfect overheat protection function and ionization resistance, able to meet environmental requirements of the small heat-load machine rooms for base stations in cold arctic-alpine area.
Condenser
With an enclosure of anti-corrosion alloy that ensures service life and appearance of the is elaborately designed and able to satisfy the environmental protection requirements on noise, and a fan speed regulator that controls the rotating speed under different temperature and ensures sound operating effect and energy saving.
