Intelligent technology Precision air conditioner used in High-tech environment and lab
Features:
Cooling capacity: 5.9-102kw
Type: air cooled precision Air conditioner, water cooler precision Air conditioner
Function: precise cooling, heating, humidification, complete control room temp&humi.
Air supply mode: Up, Down
Cost: Low investment cost, low running cost.
Certificate:3C, Security System Certificate,Environmental System Certificate
Sensible heating: Large volume, small Enthalpy difference, high sensible heating ratio, fast processing the Sensible heating load
in the machine room.
| Model:HADC/HAUC | 0061 | 0081 | 0101 | 0111 | 0131 | 0161 | 0191 | 0201 |
| Cooling capacity(1) | kw | 5.9 | 7.7 | 9.3 | 10.6 | 12.6 | 15.6 | 18.2 | 20.5 |
| Air flow | m³/h | 1720 | 2150 | 2850 | 3200 | 3530 | 4800 | 5200 | 5700 |
| EER | | 3.6 | 3.65 | 3.55 | 3.65 | 3.6 | 3.65. | 3.65 | 3.66 |
| SHR | | 0.95 | 0.93 | 0.95 | 0. 95 | 0.93 | 0.96 | 0.93 | 0.93 |
| | Compressor | | | | | | | | | |
| Type | | | | | | | | | |
| Capacity | kw | 1.5 | 1.9 | 2.2 | 2.3 | 3 | 3.6 | 4.3 | 5.3 |
| Quantity | nr | 1 | 1 | 1 | | 1 | 1 | 1 | 1 |
| Finned coll evaporator | | | | | | | | | |
| Frontal suface | ㎡ | 0.29 | 0.29 | 0.47 | 0.47 | 0.47 | 0.65 | 0.65 | 0.65 |
| Geometry | mm | | | | | | | | |
| Type of fins | | | | | | | | | |
| FIn pitch | mm | | | | | | | | |
| Fan section | | | | | | | | | |
| Type | | | | | | | | | |
| Quantity | nr | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Absorbed current | A | 1.2 | 1.6 | 3.2 | 3.2 | 3.2 | 3.8 | 3.8 | 3.8 |
| Absorbed power | W | 165 | 282 | 500 | 563 | 563 | 668 | 668 | 850 |
| AESP Max Speed(2) | Pe | 180 | 180 | 180 | 250 | 250 | 250 | 250 | 250 |
| Air flter | | | | | | | | | |
| Eficiency | | | | | | | | | |
| Overall surface | ㎡ | 2.2 | 2.2 | 3.6 | 3.6 | 3.6 | 5 | 5 | 5 |
| Fire reslstance dlass | | | | | | | | | |
| I Electrical heaters | | | | | | | | | |
| Total heating capaclty | kw | 2 | 2 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Material | | | | | | | | | |
| Humidifier | | | | | | | | | |
| Capacty | Kg/h | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Absorbed power | kw | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
| Dimension&Weight | | | | | | | | | |
| Height | mm | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 |
| Length | mm | 600 | 600 | 900 | 900 | 900 | 1200 | 1200 | 1200 |
| Depth | mm | 449 | 449 | 49 | 449 | 449 | 449 | 449 | 449 |
| Welght | kg | 150 | 157 | 195 | 210 | 230 | 245 | 255 | 270 |
| Sound level | | | | | | | | | |
| Sound pressure lel(3) | db(A) | 46 | 48 | 48 | 49 | 51 | 52 | 53 | 52 |
Humidifier
An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all controlled by computer, the auto cleaning program for the humidifier cylinder ensure normal humidification effciency of the clinder.

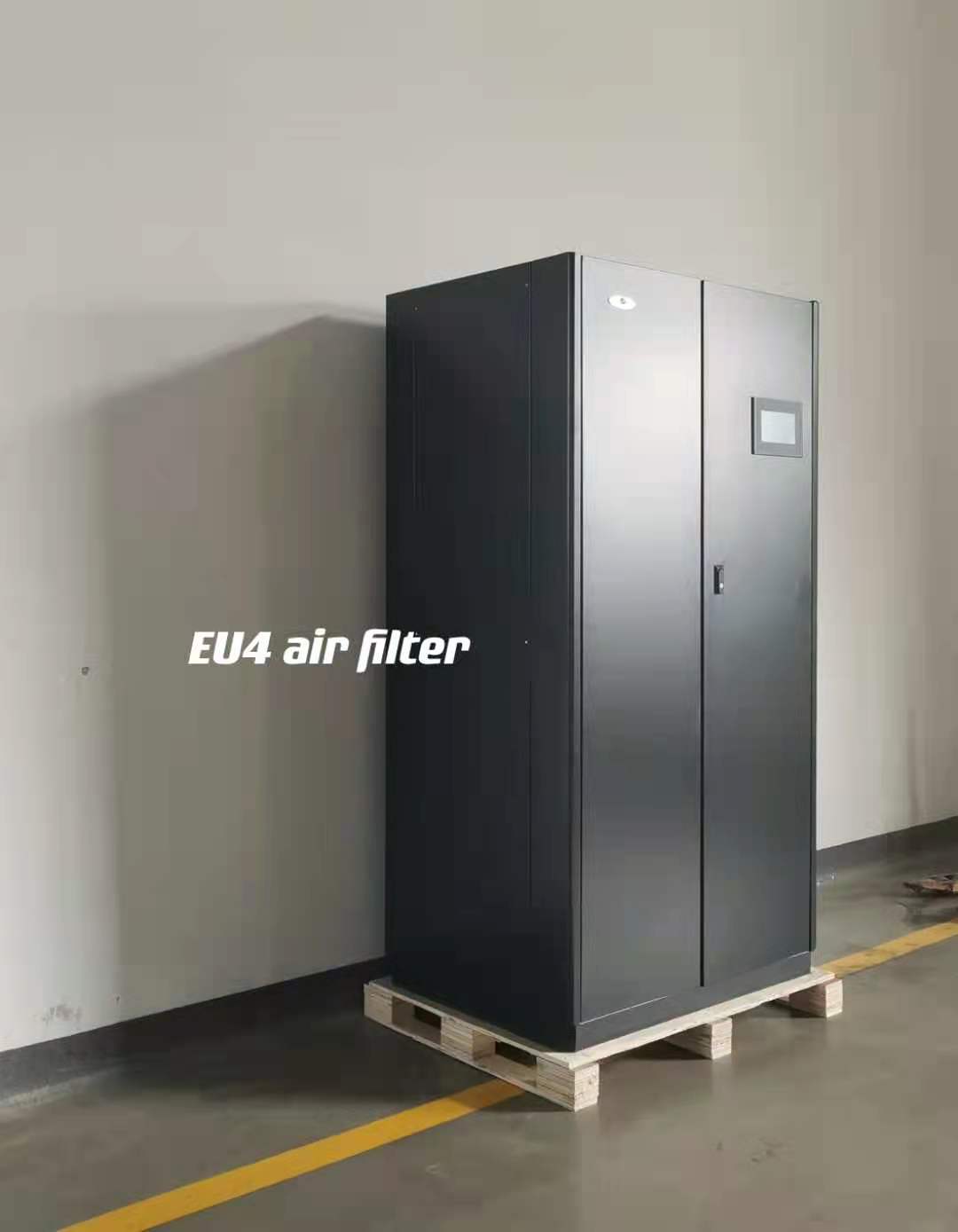

Filter
Air filter which is EU4 standard which is metallic bracket , filtering the dust and particulate effectively by air circulation , then purifying the air environment of telecom room.
Scroll Compressor
The core power of the unit is from Copeland hermetic scroll compressor that guarantees the high efficiency ,low noise and the long life of the unit.
Why Us?
HeFei HAIRF international trading., ltd provides solutions for any type of environment friendly precise air conditioning need.
Being precision air conditioner professional manufaturer, we have more than 30years R&D and manufature experience. We can provide competitive discount on our products and are able to sell these at lower than market rates and also provide much better after-sales sales service.
|
|
