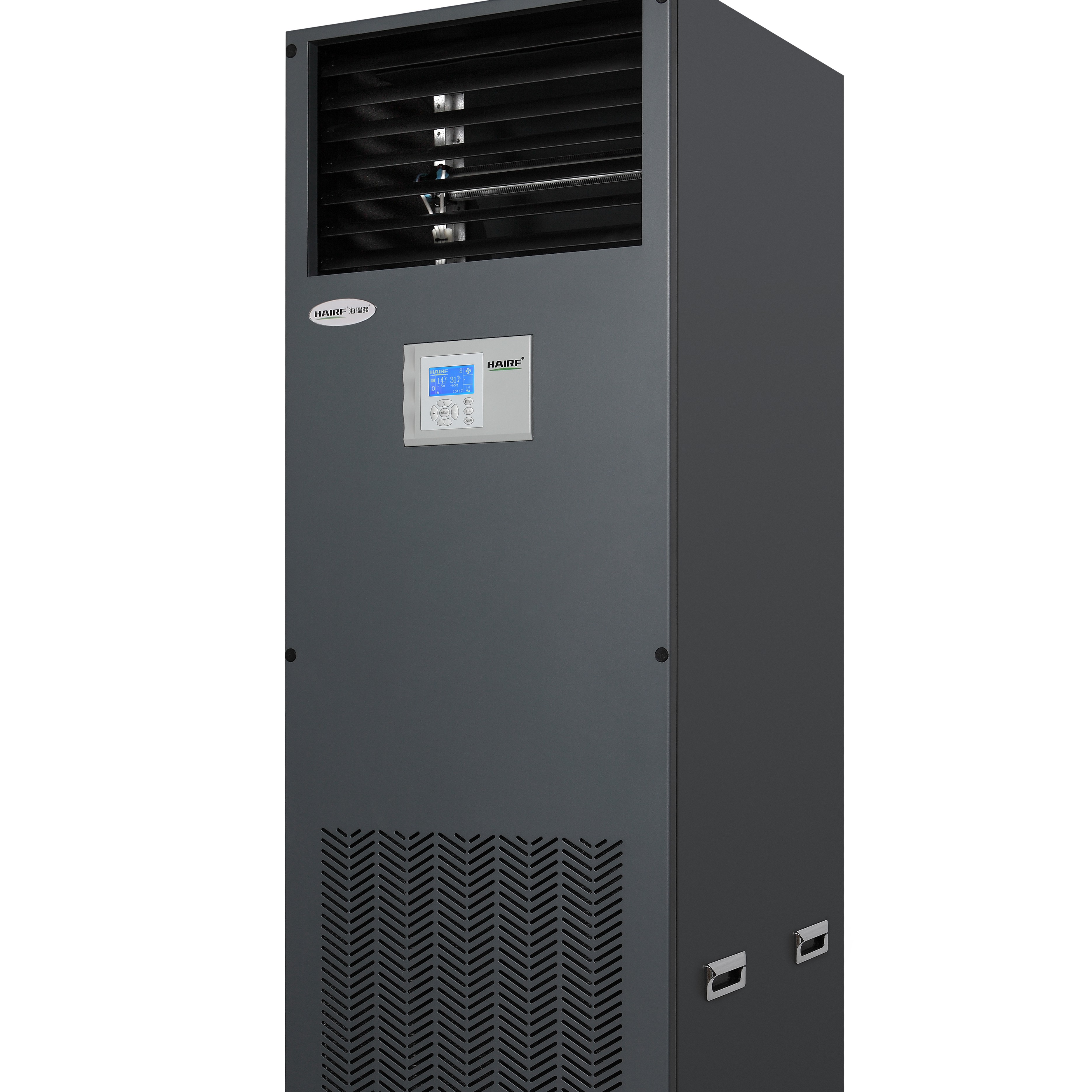

Economical precision air conditioner air cooler used in small and medium IT room
Features:
Cooling capacity: 5.9-102kw
Type: air cooled precision Air conditioner, water cooler precision Air conditioner
Function: precise cooling, heating, humidification, complete control room temp&humi.
Air supply mode: Up, Down
Cost: Low investment cost, low running cost.
Certificate:3C, Security System Certificate,Environmental System Certificate
Sensible heating: Large volume, small Enthalpy difference, high sensible heating ratio, fast processing the Sensible
heating load in the machine room.
| Model | P5000 | P7500 | P12500 | P14000 | P17500 | P20000 |
| Nominal cooling capacity (KW) | 6.3 | 8.2 | 12. 7 | 14.1 | 17.5 | 20. 3 |
| Air flow(m2/h) | 1500 | 1850 | 2700 | 3000 | 3700 | 4100 |
| SHR | 0.92 | 0.93 | 0.92. | 0. 92 | 0.91 | 0.93 |
| Compressor | Hermetic scroll | Hermetic scroll | Hermetic scroll | Hermetic scroll | Hermetic scroll | Hermetic scroll |
| Compressor quantity | 1 | 1 | 1 | 1 | 1 | 1 |
| Indoor blower fan | Back curved blades | Back curved blades | Back curved blades | Back curved blades | Back curved blades | Back curved blades |
| Indoor blower fan quantity | centrifugal fan | centrifugal fan | centrifugal fan | centrifugal fan | centrifugal fan | centrifugal fan |
| Heater | 1 | 1 | 1 | 1 | 1 | 1 |
| Rated power (KI) | PTC | PTC | PTC | PTC | PTC | PIC |
| Humidifier | 2 | 2 | 2 | 2 | 2.5 | 2.5 |
| Air displacement | Electrode(optional) | Electrode (optional) | Electrode (optional) | Electrode (optional) | Electrode (optional) | Elctrode (optional) |
| Air supply | Front | Front | Front | Front | Front | Front |
| Indoor unit dimension(mn) | Front | Front | Front | Front | Front | Front |
| Outdoor unit dimension (mm) | 600x500x1900 | 600x500x1740 | 600x500x1740 | 600x500x1740 | 750x750x1900 | 900x800x1800 |
| Indoor unit weight (kg) | 885x380x720 | 810x400x1020 | 950x350x1240 | 950x350x1240 | 1035x380x825 | 1035x380x825 |
| Outdoor unit weight 0kg) | 155 | 165 | 170 | 172 | 194 | 200 |
| Indoor unit noise (dB) | 86 | 38 | 39 | 40 | 42.5 | 43.5 |
| Outdoor unit noise (dB) | 52 | 52 | 55 | 57 | 6 | 61 |
| Controller language | 58 | 58 | 59 | 60 | 60 | 62 |
| Communicat ion interface | English . | English | English | English | English | English |
| Communication protocol | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 |
| Power | Modbus RTU | Modbus RTU | Modbus RTU | Modbus RTU | Modbus RTU | Modbus RTU |
| supply | (220 or 380V) /50Hz| | (220 or 380V) /50Hz | (220 or 380V) /50Hz | (220 or 380V) /50Hz | 380V/50Hz | 380V/50Hz |
| Gas pipe diameter (mm) | 6 | 16 | 16 | 16 | 19 | 19 |
| Liquid pipe diameter(mm) | 12 | 12 | 12 | 12 | 16 | 16 |
Filter
Air filter which is EU4 standard which is metallic bracket , filtering the dust and particulate effectively by air circulation , then purifying the air environment of telecom room.
Scroll Compressor
The core power of the unit is from Copeland hermetic scroll compressor that guarantees the high efficiency ,low noise and the long life of the unit.
Indoor blower fan
A blow fan adopts direct drive centrifugal fan with backward curved blades, the range of static pressure can be adjusted from 0 to 400pa, realizing the continuous operation of 365 days* 24 hours, 10 years’ average life.
The high-performance unit employ energy-saving EC fan controlled by 0-10V signal,DC driven and stepless speed regulation,which is more excellent than traditional fan in energy-saving filed.
Microprocessor control
The control system of the unit adopts advanced 32 bits microprocessor that provides more accurate and convenient system monitoring,programming and alarm record. Under normal range of working temperature and humidity, the accuracy of temperature controlis at +0.2 and that of humidity control +2%. The control panel of high configuration unit can choose the big touch screen with 1/4 VGA resolution.
Various kinds of Internet centralized monitoring modes
Through Internet monitoring network, a real-time long-distance monitoring on air conditioning unit can be realized. This system supports various kinds of networks, such as: homenet, telenet, building automation system and power and environment centralized monitoring network.
Why Us?
HeFei HAIRF international trading., ltd provides solutions for any type of environment friendly precise air conditioning need.
Being precision air conditioner professional manufaturer, we have more than 30years R&D and manufature experience. We can provide competitive discount on our products and are able to sell these at lower than market rates and also provide much better after-sales sales service.
